SB120 - Schottky Rectifiers

Features

  • 1.0 ampere operation at TA = 75°C with no thermal runaway. For use in low voltage, high frequency inverters free wheeling, and polarity protection.

📥 Download Datasheet

📁 Similar Datasheet

  • SB120 - 1 AMPERE SCHOTTKY BARRIER RECTIFIERS (Pan Jit International Inc.)
  • SB120 - 1.0A SCHOTTKY BARRIER RECTIFIER (Diodes Incorporated)
  • SB120 - SCHOTTKY BARRIER RECTIFIER (GOOD-ARK Electronics)
  • SB120 - SCHOTTKY BARRIER RECTIFIER (ZOWIE)
  • SB120 - 1.0A SCHOTTKY BARRIER RECTIFIER (SANGDEST MICROELECTRONICS)
  • SB120 - SCHOTTKY BARRIER RECTIFIERS (LITE-ON)
  • SB120 - Schottky Barrier Plastic Rectifier (Vishay)
  • SB120 - SCHOTTKY BARRIER RECTIFIER DIODES (EIC)
  • SB120 - Schottky barrier rectifiers diodes (Semikron)
  • SB120 - Schottky Barrier Rectifiers (LRC)
Other Datasheets by Fairchild Semiconductor
  • SB1100 - Schottky Rectifiers
  • SB130 - Schottky Rectifiers
  • SB140 - Schottky Rectifiers
  • SB150 - Schottky Rectifiers
  • SB160 - Schottky Rectifiers
  • SB180 - Schottky Rectifiers

Full PDF Text Transcription

Click to expand full text

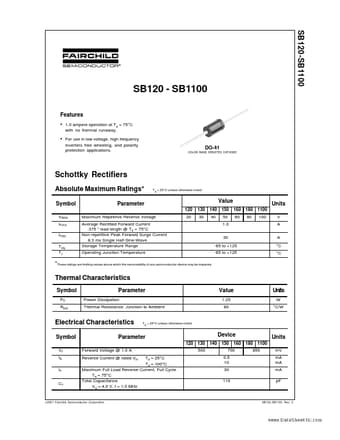

SB120-SB1100 SB120 - SB1100 Features • • 1.0 ampere operation at TA = 75°C with no thermal runaway. For use in low voltage, high frequency inverters free wheeling, and polarity protection applications. DO-41 COLOR BAND DENOTES CATHODE Schottky Rectifiers Absolute Maximum Ratings* Symbol VRRM IF(AV) IFSM Tstg TJ TA = 25°C unless otherwise noted Parameter 120 Maximum Repetitive Reverse Voltage Average Rectified Forward Current .375 " lead length @ TA = 75°C Non-repetitive Peak Forward Surge Current 8.3 ms Single Half-Sine-Wave Storage Temperature Range Operating Junction Temperature 20 130 30 140 40 Value 150 50 1.
