FP5137 - 1 CHANNEL SYNCHRONOUS PWM CONTROL IC

Description

The FP5137 is a synchronous buck switching regulator control IC for DC-DC applications field.

Features

  • £» £» £» £» £» £» £» Feedback Reference Voltage: 1.25V (2%) Peak Output Source/Drive Capability: 500mA Internal 200KHz Oscillator Programmable Soft Start function (SS) Short Circuit Protection function(SCP) Internal UVLO function Package: PDIP8/SOP8 SOP8.

📥 Download Datasheet

Datasheet Details

Part number FP5137
Manufacturer Feeling
File Size 485.08 KB
Description 1 CHANNEL SYNCHRONOUS PWM CONTROL IC
Datasheet download datasheet FP5137 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
FP5137A 1 CHANNEL SYNCHRONOUS PWM CONTROL IC Feeling Technology
FP5132A BURST MODE CONTROL IC Feeling Technology
FP5132B BURST MODE CONTROL IC Feeling Technology
FP5138 BOOST CONVERT CONTROL IC feeling-tech
FP5138B Non-Synchronous PWM Boost Controller Feeling Technology

Other Datasheets by Feeling

Part Number Description
FP5137B 1 CHANNEL SYNCHRONOUS PWM CONTROL IC
FP5148 2 CHANNEL SYNCHRONOUS PWM CONTROLLER

Full PDF Text Transcription

Click to expand full text

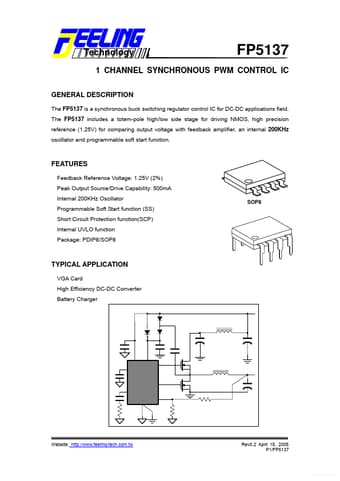

Technology FP5137 1 CHANNEL SYNCHRONOUS PWM CONTROL IC GENERAL DESCRIPTION The FP5137 is a synchronous buck switching regulator control IC for DC-DC applications field. The FP5137 includes a totem-pole high/low side stage for driving NMOS, high precision reference (1.25V) for comparing output voltage with feedback amplifier, an internal 200KHz oscillator and programmable soft start function. FEATURES £» £» £» £» £» £» £» Feedback Reference Voltage: 1.
