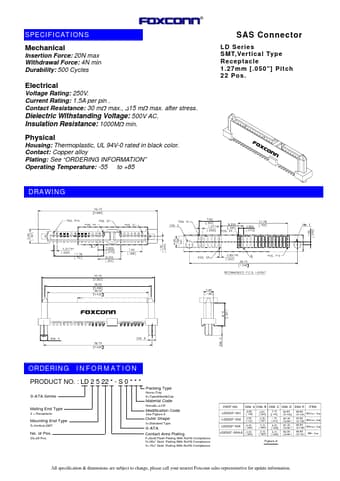

SPECIFICATIONS
Mechanical
Insertion Force: 20N max Withdrawal Force: 4N min Durability: 500 Cycles
Electrical
Voltage Rating: 250V. Current Rating: 1.5A per pin . Contact Resistance: 30 mΩ max., ∆15 mΩ max. after stress.
Dielectric Withstanding Voltage: 500V AC. Insulation Resistance: 1000MΩ min.
Physical
Housing: Thermoplastic, UL 94V-0 rated in black color. Contact: Copper alloy Plating: See “ORDERING INFORMATION” Operating Temperature: -55 to +85
DRAWING
SAS Connector
LD Series SMT,Vertical Type Receptacle 1.27mm [.050"] Pitch 22 Pos.
ORDERING I N FO R M ATIO N
PRODUCT NO. : LD 2 5 22 * - S 0 * * *
S-ATA Series
Mating End Type
2 = Receptacle
Mounting End Type
5=Vertical,SMT
No. of Pos.
29=29 Pos.
LD2522H-S04L6 Datasheet
