GE

RL2004-4429-122-K Datasheet Preview

RL2004-4429-122-K Datasheet

NTC Thermistors

No Preview Available !

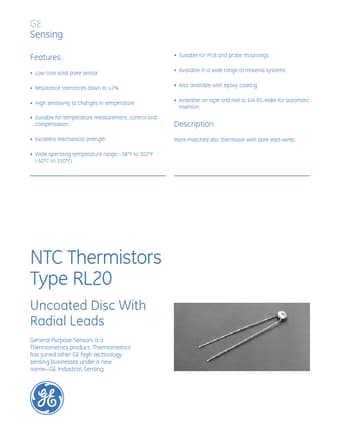

GE
Sensing
Features
• Low cost solid state sensor
• Resistance tolerances down to ±2%
• High sensitivity to changes in temperature
• Suitable for temperature measurement, control and
compensation
• Excellent mechanical strength
• Wide operating temperature range: -58°F to 302°F
(-50°C to 150°C)
• Suitable for PCB and probe mountings
• Available in a wide range of material systems
• Also available with epoxy coating
• Available on tape and reel to EIA RS-468A for automatic
insertion
Description
Point-matched disc thermistor with bare lead-wires.
NTC Thermistors
Type RL20
Uncoated Disc With
Radial Leads
General Purpose Sensors is a
Thermometrics product. Thermometrics
has joined other GE high-technology
sensing businesses under a new
name—GE Industrial, Sensing.
g




GE

RL2004-4429-122-K Datasheet Preview

RL2004-4429-122-K Datasheet

NTC Thermistors

No Preview Available !

GE
Sensing
Type RL20
Specifications
Type Number
RL2004-16.4-59-M
RL2007-32.8-59-M
RL2003-62.4-73-K
RL2004-93.6-73-K
RL2004-89.1-85-K
RL2006-125-73-K
RL2006-119-85-K
RL2007-156-73-K
RL2008-187-73-K
RL2008-178-85-K
RL2003-289-95-K
RL2005-434-95-K
RL2006-578-95-K
RL2004-582-97-K
RL2006-873-97-K
RL2007-1164-97-K
RL2005-1148-103-K
RL2006-1600-103-K
RL2008-2010-103-K
RL2005-2203-120-K
RL2006-2753-120-K
Ro@25°C
Ω
25
50
100
150
150
200
200
250
300
300
500
750
1K
1K
1.5K
2K
2K
2786
3.5K
4K
5K
Material
Systems
D5.9
D5.9
D7.3
D7.3
D8.5
D7.3
D8.5
D7.3
D7.3
D8.5
D9.5
D9.5
D9.5
D9.7A
D9.7A
D9.7A
D10.3
D10.3
D10.3
D12.0
D12.0
Beta
25/85
3096
3096
3468
3468
3772
3468
3772
3468
3468
3772
3965
3965
3965
3972
3972
3972
4073
4073
4073
4356
4356
B
in mm
.130 3.30
.160 4.06
.120 3.05
.130 3.30
.130 3.30
.150 3.81
.150 3.81
.160 4.06
.170 4.32
.170 4.32
.120 3.05
.140 3.56
.150 3.81
.130 3.30
.150 3.81
.160 4.06
.140 3.56
.150 3.81
.170 4.32
.140 3.56
.150 3.81
δτ
(mW/K) (sec.)
6.5 20
6.5 30
6.5 20
6.5 20
6.5 20
6.5 20
6.5 20
6.5 30
6.5 30
6.5 30
6.5 20
6.5 20
6.5 20
6.5 20
6.5 20
6.5 30
6.5 20
6.5 20
6.5 30
6.5 20
6.5 20
Type Number
Ro@25°C
Ω
RL2008-4131-120-K
7.5K
RL2004-4429-122-K
8K
RL2012-5506-120-K
10K
RL2005-5536-122-K
10K
RL2007-8304-122-K
15K
RL2010-11K-122-K
20K
RL2005-10.7K-140-K
20K
RL2003-13.2K-150-K
25K
RL2006-13.3K-140-K
25K
RL2007-16K-140-K
30K
RL2004-18.4-150-K
35K
RL2004-21.6K-138-K
40K
RL2005-27K-138-K
50K
RL2006-26.3K-150-K
50K
RL2004-26K-155-K
50K
RL2008-39.6K-150-K
70K
RL2007-40.6K-138-K
75K
RL2007-44.5K-155-K
85K
RL2010-54.1K-138-K
100K
RL2008-52.3K-155-K
100K
Material
Systems
D12.0
D12.2
D12.0
D12.2
D12.2
D12.2
D14.0
D15.0
D14.0
D14.0
D15.0
D13.8
D13.8
D15.0
D15.5
D15.0
D13.8
D15.5
D13.8
D15.5
Beta
25/85
4356
4365
4356
4365
4365
4365
4615
4728
4615
4615
4720
4561
4561
4720
4783
4220
4561
4783
4561
4783
B
in mm
.170 4.32
.130 3.30
.210 5.33
.140 3.56
.160 4.06
.190 4.83
.140 3.56
.120 3.05
.150 3.81
.160 4.06
.130 3.30
.130 3.30
.140 3.56
.150 3.81
.130 3.30
.170 4.32
.160 4.06
.160 4.06
.190 4.83
.170 4.32
δτ
(mW/K) (sec.)
6.5 30
6.5 20
7.2 50
6.5 20
6.5 30
7.0 35
6.5 20
6.5 20
6.5 20
6.5 30
6.5 20
6.5 20
6.5 20
6.5 20
6.5 20
6.5 30
6.5 30
6.5 30
7.0 35
6.5 30
0.156 in
(4 mm)
1.5 in (38 mm) min
0.220 in max
(5.6 mm)
26 awg tinned copper
Options
B thickness
refer to table
• Other resistances and tolerances at other temperatures
available.
• Resistances tolerance codes: G = 2%
– J = 5%
– K = 10%
– L = 15%
– M = 20%
• Alternative lead lengths, lead materials, insulations
• The - “K” suffix is the same as the “DI” suffix in earlier
catalogs.
g
©2007 GE. All rights reserved.
920-413A
All specifications are subject to change for product improvement without notice.
GE® is a registered trademark of General Electric Co. Other company or product
names mentioned in this document may be trademarks or registered trademarks
of their respective companies, which are not affiliated with GE.
www.gesensing.com
