BAV19W - High Voltage Switching Diode

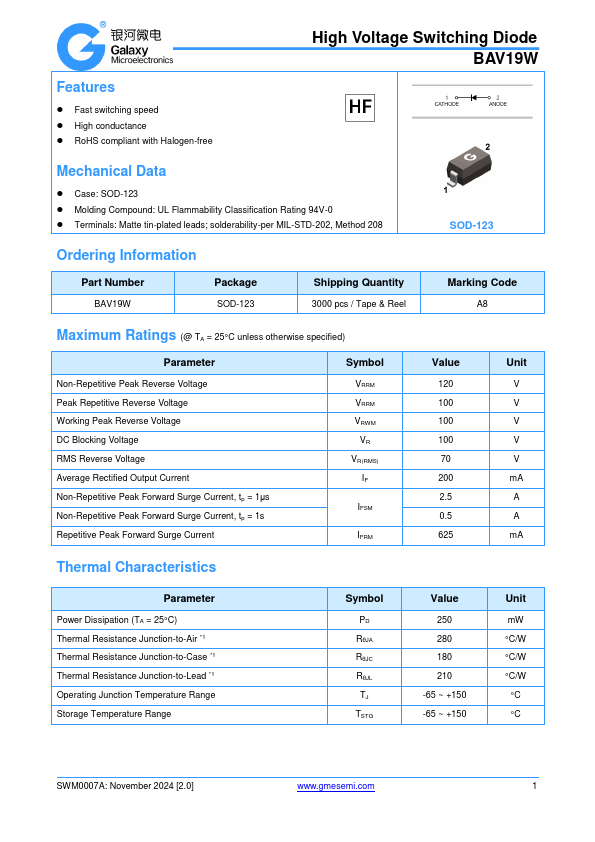

Key Features

  • Fast switching speed.
  • High conductance.
  • RoHS compliant with Halogen-free High Voltage Switching Diode BAV19W Mechanical Data.
  • Case: SOD-123.
  • Molding Compound: UL Flammability Classification Rating 94V-0.
  • Terminals: Matte tin-plated leads; solderability-per MIL-STD-202, Method 208 SOD-123 Ordering Information Part Number BAV19W Package SOD-123 Shipping Quantity 3000 pcs / Tape & Reel Marking Code A8 Maximum Ratings (@ TA = 25°C unless otherwise specified).

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BAV19W SURFACE MOUNT FAST SWITCHING DIODE Sunmate
BAV19W Surface Mount Fast Switching Doide Semiware
BAV19W FAST SWITCHING DIODE SMC Diode
BAV19W Silicon Epitaxial Planar Diodes JGD
BAV19W SURFACE MOUNT SWITCHING DIODES EIC

Other Datasheets by Galaxy Microelectronics

Part Number Description
BAV19WS Silicon Epitaxial Planar Diode
BAV199 Dual surface mount low leakage diode
BAV199DW Surface Mount Fast Switching Diodes
BAV19L Surface mount switching diode
BAV16L Silicon Epitaxial Planar Diode

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

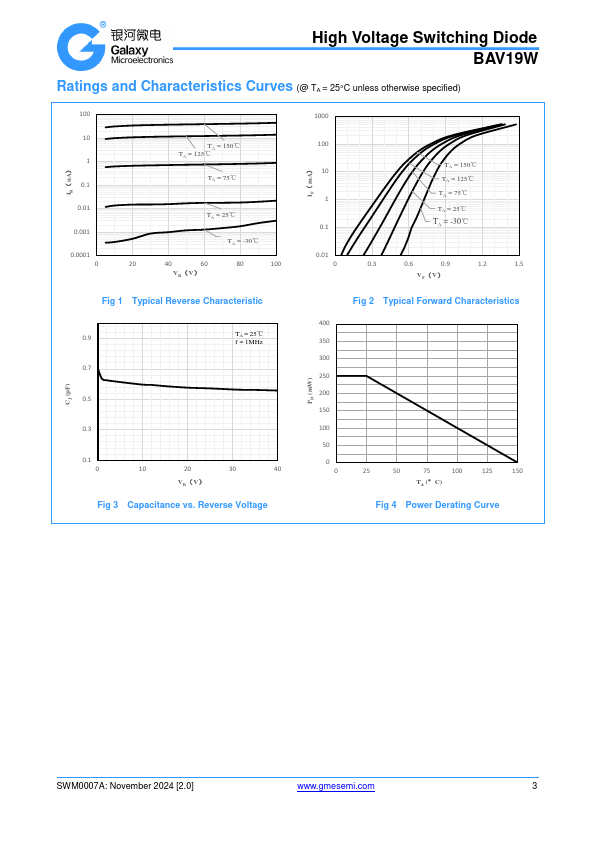

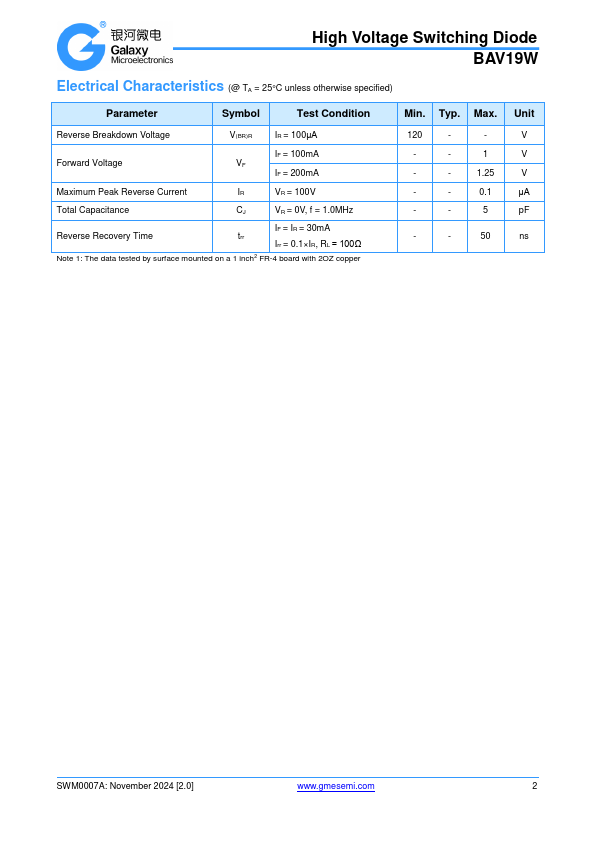

Features  Fast switching speed  High conductance  RoHS compliant with Halogen-free High Voltage Switching Diode BAV19W Mechanical Data  Case: SOD-123  Molding Compound: UL Flammability Classification Rating 94V-0  Terminals: Matte tin-plated leads; solderability-per MIL-STD-202, Method 208 SOD-123 Ordering Information Part Number BAV19W Package SOD-123 Shipping Quantity 3000 pcs / Tape & Reel Marking Code A8 Maximum Ratings (@ TA = 25°C unless otherwise specified) Parameter Non-Repetitive Peak Reverse Voltage Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage RMS Reverse Voltage Average Rectified Output Current Non-Repetitive Peak Forward Surge Current, tp = 1μs Non-Repetitive Peak Forward Surge Current, tp = 1s Repetitive Peak Forward Surge Cu
