GBP310 - Silicon Bridge Rectifiers

Download the GBP310 datasheet PDF (GBP3005 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for silicon bridge rectifiers.

Features

  • z Rating to 1000V PRV z Surge overload rating to 70Amperes peak z Ideal for printed circuit board z Reliable low cost construction utilizing molded plastic technique results in inexpensive product z Lead solderable per MIL-STD-202 method 208 z Plastic material has UL flammability classification 94V-O z Glass passivated chip junctions Maximum Ratings (@TA = 25°C unless otherwise specified) Characteristic Symbol GBP 3005 GBP 301 GBP 302 Maximum recurrent peak reverse voltage VRRM 50 1.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (GBP3005-GME.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

  • GBP310 - SINGLE-PHASE SILICON BRIDGE (CHENG-YI ELECTRONIC)
  • GBP310 - Silicon Bridge Rectifiers (Luguang Electronic)
  • GBP310 - 3.0Amp Glass Passivated Bridge Rectifiers (SeCoS)
  • GBP310 - GLASS PASSIVATED BRIDGE RECTIFIERS (HY ELECTRONIC)
  • GBP310 - Bridge Rectifiers (Yangzhou Yangjie)
  • GBP310 - 3A Miniature Single-Phase Bridge Rectifiers (CITC)
  • GBP310 - Plastic-Encapsulate Bridge Rectifier (High Diode)
  • GBP300 - IN-LINE GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER(VOLTAGE - 50 to 1000 Volts CURRENT - 3.0 Amperes) (Pan Jit International Inc.)
  • GBP3005 - SINGLE-PHASE SILICON BRIDGE (CHENG-YI ELECTRONIC)
  • GBP3005 - Silicon Bridge Rectifiers (Luguang Electronic)
Other Datasheets by GME
  • GBP3005 - Silicon Bridge Rectifiers
  • GBP301 - Silicon Bridge Rectifiers
  • GBP302 - Silicon Bridge Rectifiers
  • GBP304 - Silicon Bridge Rectifiers
  • GBP306 - Silicon Bridge Rectifiers
  • GBP307 - Silicon Bridge Rectifiers
  • GBP308 - Silicon Bridge Rectifiers

Full PDF Text Transcription

Click to expand full text

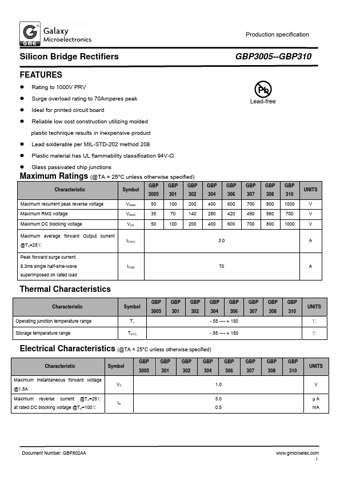

Production specification Silicon Bridge Rectifiers GBP3005--GBP310 FEATURES z Rating to 1000V PRV z Surge overload rating to 70Amperes peak z Ideal for printed circuit board z Reliable low cost construction utilizing molded plastic technique results in inexpensive product z Lead solderable per MIL-STD-202 method 208 z Plastic material has UL flammability classification 94V-O z Glass passivated chip junctions Maximum Ratings (@TA = 25°C unless otherwise specified) Characteristic Symbol GBP 3005 GBP 301 GBP 302 Maximum recurrent peak reverse voltage VRRM 50 100 200 Maximum RMS voltage VRMS 35 70 140 Maximum DC blocking voltage VDC 50 100 200 Maximum average forward Output current @TA=25℃ IF(AV) Peak forward surge current 8.
