MUR560D - SUPER FAST RECTIFIERS

Download the MUR560D datasheet PDF (MUR520D included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for super fast rectifiers.

Features

  • z Low cost. z Low leakage. z Low forward voltage drop. Pb Lead-free z High currnt capability. z Easily cleaned with Alcohol,Isopropanol and similar solvents. z The plastic material carries U/L recognition 94V-0. TO-252.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MUR520D-GME.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

  • MUR560D - Ultra-Fast Recovery Diode (Yangzhou Yangjie)
  • MUR560DA - Ultra-Fast Recovery Rectifier Diode (Yangzhou Yangjie)
  • MUR560 - Super Fast Rectifiers (Luguang Electronic)
  • MUR560 - Ultrafast power diodes (WeEn)
  • MUR560 - 5.0A Super Fast Rectifiers (JX)
  • MUR560 - Ultra Fast Recover diode (GOOD-ARK)
  • MUR560 - Ultra-Fast Recovery Diode (Yangzhou Yangjie)
  • MUR560CT - 5.0A Super Fast Rectifiers (JX)
  • MUR560F - Ultra Fast Recover diode (GOOD-ARK)
  • MUR560F - Ultra-Fast Recovery Diode (Yangzhou Yangjie)
Other Datasheets by GME

Full PDF Text Transcription

Click to expand full text

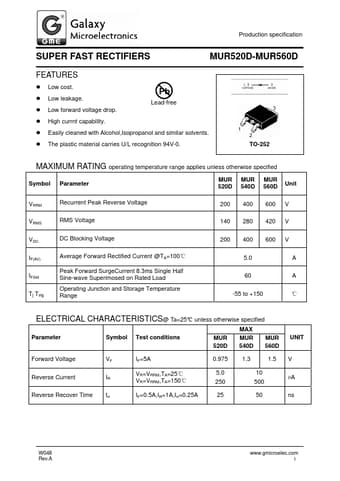

Production specification SUPER FAST RECTIFIERS MUR520D-MUR560D FEATURES z Low cost. z Low leakage. z Low forward voltage drop. Pb Lead-free z High currnt capability. z Easily cleaned with Alcohol,Isopropanol and similar solvents. z The plastic material carries U/L recognition 94V-0. TO-252 MAXIMUM RATING operating temperature range applies unless otherwise specified Symbol Parameter MUR 520D MUR 540D MUR 560D Unit VRRM VRMS Recurrent Peak Reverse Voltage RMS Voltage 200 400 600 V 140 280 420 V VDC IF(AV) IFSM Tj Tstg DC Blocking Voltage Average Forward Rectified Current @TA=100℃ Peak Forward SurgeCurrent 8.3ms Single Half Sine-wave Superimosed on Rated Load Operating Junction and Storage Temperature Range 200 400 600 V 5.
