S5817FA - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS

Features

  • z Low leakage z Low forward voltage drop Pb Lead-free z High current capability z For surface mounted.

📥 Download Datasheet

📁 Similar Datasheet

  • S5817 - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER (MIC)
  • S581-4000-14 - 9.9-11.2Gb/s Optical Modulator Driver (TriQuint Semiconductor)
  • S5812 - DIGITAL AUDIO DATA TRANSFORMER (Bothhandusa)
  • S5818 - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER (MIC)
  • S5819 - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER (MIC)
  • S580DK3-KS5 - TFT LCD Module (INNOLUX)
  • S5821 - high reliability Si PIN photodiodes (Hamamatsu Corporation)
  • S5833H - T1/CEPT/ISDN-PRI TRANSFORMER (Bothhandusa)
  • S5834 - T1/CEPT/ISDN-PRI TRANSFORMER (Bothhandusa)
  • S5856 - T3/DS3/E3/STS-1 TRANSFORMER (Bothhandusa)
Other Datasheets by GME
  • S5818FA - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS
  • S5819FA - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS

Full PDF Text Transcription

Click to expand full text

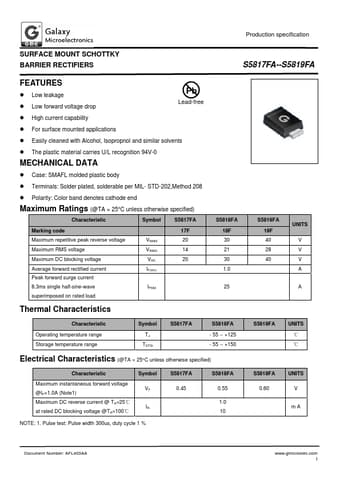

Production specification SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS S5817FA--S5819FA FEATURES z Low leakage z Low forward voltage drop Pb Lead-free z High current capability z For surface mounted applications z Easily cleaned with Alcohol, Isopropnol and similar solvents z The plastic material carries U/L recognition 94V-0 MECHANICAL DATA z Case: SMAFL molded plastic body z Terminals: Solder plated, solderable per MIL- STD-202,Method 208 z Polarity: Color band denotes cathode end Maximum Ratings (@TA = 25°C unless otherwise specified) Characteristic Symbol S5817FA Marking code Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Average forward rectified current Peak forward surge current 8.
