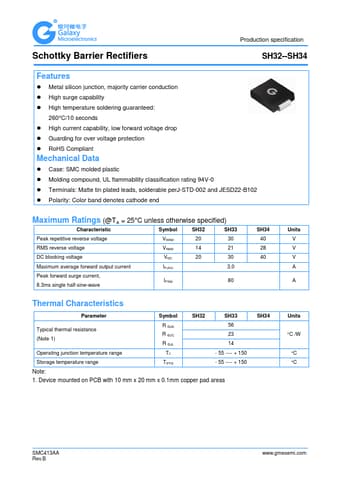

Schottky Barrier Rectifiers Production specification SH32--SH34 Features - Metal silicon junction, majority carrier conduction - High surge capability - High temperature soldering guaranteed: 260°C/10 seconds - High current capability, low forward voltage drop - Guarding for over voltage protection - RoHS pliant Mechanical Data - Case: SMC molded plastic - Molding pound, UL flammability classification rating 94V-0 - Terminals: Matte tin plated leads, solderable perJ-STD-002 and JESD22-B102 - Polarity: Color band denotes cathode end Maximum Ratings (@TA = 25°C unless otherwise specified) Characteristic Symbol SH32 SH33 Peak repetitive reverse voltage VRRM RMS reverse...
