1S6G
1S6G is Glass Passivated Super Fast Rectifiers manufactured by Good-Ark Semiconductor.
- Part of the 1S6G-GOOD comparator family.
- Part of the 1S6G-GOOD comparator family.
Features
Low forward voltage drop High current capability High reliability High surge current capability

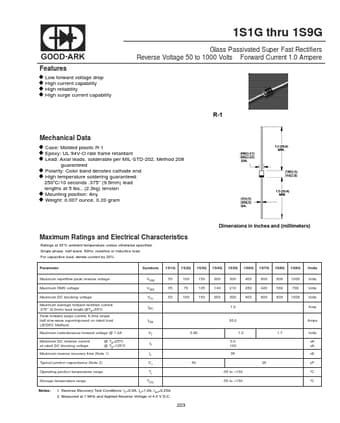

1S1G thru 1S9G
Glass Passivated Super Fast Rectifiers Reverse Voltage 50 to 1000 Volts Forward Current 1.0 Ampere
Mechanical Data
Case: Molded plastic R-1 Epoxy: UL 94V-O rate flame retardant Lead: Axial leads, solderable per MIL-STD-202, Method 208 guaranteed Polarity: Color band denotes cathode end High temperature soldering guaranteed:
250oC/10 seconds .375” (9.5mm) lead lengths at 5 lbs., (2.3kg) tension Mounting position: Any Weight: 0.007 ounce, 0.20 gram
Maximum Ratings and Electrical Characteristics
Ratings at 25oC ambient temperature unless otherwise...
