MB18S - Surface Mount Schottky Bridge Rectifier

This page provides the datasheet information for the MB18S, a member of the MB12S-GOOD Surface Mount Schottky Bridge Rectifier family.

Features

  • Plastic package has Underwriters Laboratory Flammability Classification 94V-0.
  • High surge overload rating:30A peak.
  • Space saving.
  • High temperature soldering guaranteed:260°C/10 seconds MB12S thru MB110S Surface Mount Schottky Bridge Rectifier Reverse Voltage 20 to 100V Forward Current 1A Package:TO-269AA (MBS) Mechanical Data.
  • Case: Molded plastic body over passivated junctions.
  • Terminals: plated leads solderable per MIL-STD-750 Method 2026.
  • Mounting Positio.

📥 Download Datasheet

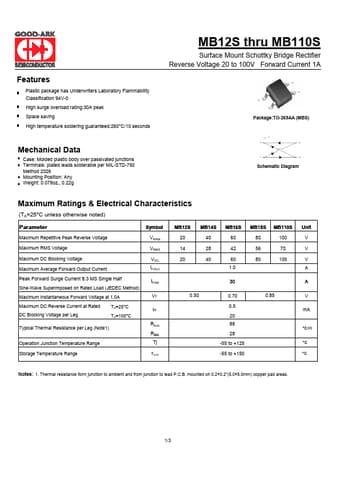

Datasheet preview – MB18S
