SINGLE-PHASE SILICON BRIDGE

No Preview Available !

Features
Surge overload rating - 125 amperes peak
Low forward voltage drop
Small size; simple installation
Silver plated copper leads
Mounting position: Any

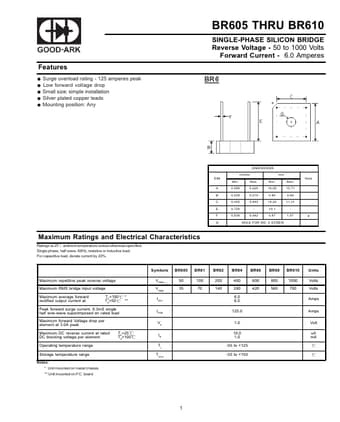

BR605 THRU BR610
SINGLE-PHASE SILICON BRIDGE
Reverse Voltage - 50 to 1000 Volts
Forward Current - 6.0 Amperes
Maximum Ratings and Electrical Characteristics
Ratings at 25 ambient temperature unless otherwise specified.
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
DIM
A
B
C
E
F
G
DIMENSIONS
inches
mm
Min.
Max.
Min.
Max.
0.580
0.620
14.69
15.71
0.230
0.270
5.84
6.86
0.405
0.445
10.29
11 .3 1
0.750
-
19.1
-
0.038
0.042
0.97
1.07
HOLE FOR NO. 6 SCREW
Note
Maximum repetitive peak reverse voltage
Maximum RMS bridge input voltage
Maximum average forward
rectified output current at
TTAC==51000
Peak forward surge current, 8.3mS single
half sine-wave superimposed on rated load
*
**
Maximum forward Voltage drop per
element at 3.0A peak
Maximum DC reverse current at rated
DC blocking voltage per element
Operating temperature range
TTAA==21500
Storage temperature range
Notes:
* Unit mounted on metal chassis
** Unit mounted on P.C. board
Symbols BR605 BR61
VRRM
VRMS
I(AV)
50 100
35 70
IFSM
VF
IR
TJ
TSTG
BR62
200
140
BR64
400
280
6.0
6.0
125.0
BR66
600
420
BR68 BR610
800 1000
560 700
1.0
10.0
1.0
-55 to +125
-55 to +150
Units
Volts
Volts
Amps
Amps
Volt
uA
mA
1




GOOD-ARK Electronics

BR60 Datasheet Preview

BR60 Datasheet

SINGLE-PHASE SILICON BRIDGE

No Preview Available !

RATINGS AND CHARACTERISTIC CURVES
2
