HM338RLL-W, HM338R-LL-W Datasheet - GOOD TAKE

HM338RLL-W, HM338R-LL-W, Photo Module Infrared receiver

The HM338RLL-W is a miniaturized receiver for use in Infrared carrier frequency PCM remote control systems. A high quality photo diode and a low noise preamplifier are assembled on lead frame, and the epoxy package is designed as IR filter. The demodulated output signal can directly be decoded by a .

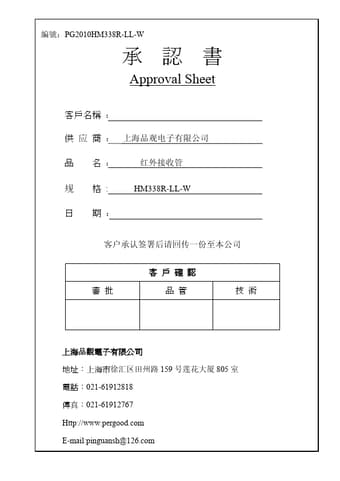

datasheet Preview Page 1 from Datasheet4u.com

HM338R-LL-W-GOODTAKE.pdf

This datasheet PDF includes multiple part numbers: HM338RLL-W, HM338R-LL-W. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number:

HM338RLL-W, HM338R-LL-W

Manufacturer:

GOOD TAKE

File Size:

255.86 KB

Description:

Photo Module Infrared receiver

Note:

This datasheet PDF includes multiple part numbers: HM338RLL-W, HM338R-LL-W.
Please refer to the document for exact specifications by model.

HM338RLL-W Features

* Photo detector and Preamplifier in one package

* Internal filter for PCM frequency

* TTL and CMOS compatibility

* Output active low

* Suitable burst length ≥10 cycles/burst

* Low current consumption 0.35mA 3V

* Operates down to 2.2 Volt Special Features

* Enhanced
