GS816218DGB-xxxV - 18Mb S/DCD Sync Burst SRAMs

This page provides the datasheet information for the GS816218DGB-xxxV, a member of the GS816218DB-xxxV 18Mb S/DCD Sync Burst SRAMs family.

Description

Applications The GS816218/36D-xxxV is an 18,874,368-bit high performance synchronous SRAM with a 2-bit burst add

Features

  • FT pin for user-configurable flow through or pipeline operation.
  • Single/Dual Cycle Deselect selectable.
  • IEEE 1149.1 JTAG-compatible Boundary Scan.
  • ZQ mode pin for user-selectable high/low output drive.
  • 1.8 V or 2.5 V core power supply.
  • 1.8 V or 2.5 V I/O supply.
  • LBO pin for Linear or Interleaved Burst mode.
  • Internal input resistors on mode pins allow floating mode pins.
  • Default to SCD x18/x36 Interleaved Pipeline m.

📥 Download Datasheet

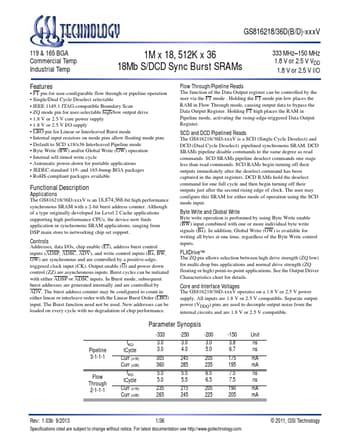

Datasheet preview – GS816218DGB-xxxV

Datasheet Details

Part number GS816218DGB-xxxV
Manufacturer GSI Technology
File Size 331.11 KB
Description 18Mb S/DCD Sync Burst SRAMs
Datasheet download datasheet GS816218DGB-xxxV Datasheet
Additional preview pages of the GS816218DGB-xxxV datasheet.

📁 Similar Datasheet

  • GS816118 - (GS816118 - GS816136) Sync Burst SRAMs (GSI)
  • GS816118B - (GS816118B - GS816136B) Sync Burst SRAMs (GSI)
  • GS816132 - (GS816118 - GS816136) Sync Burst SRAMs (GSI)
  • GS816132B - (GS816118B - GS816136B) Sync Burst SRAMs (GSI)
  • GS816136 - (GS816118 - GS816136) Sync Burst SRAMs (GSI)
  • GS816136B - (GS816118B - GS816136B) Sync Burst SRAMs (GSI)
  • GS8161E18 - (GS8161E18 - GS8161E36) Sync Burst SRAMs (GSI)
  • GS8161E32 - (GS8161E18 - GS8161E36) Sync Burst SRAMs (GSI)
  • GS8161E36 - (GS8161E18 - GS8161E36) Sync Burst SRAMs (GSI)
  • GS810C - Microprocessor Reset Monitors (Vishay Siliconix)
Other Datasheets by GSI Technology

Full PDF Text Transcription

Click to expand full text
GS816218/36D(B/D)-xxxV 119 & 165 BGA Commercial Temp Industrial Temp 1M x 18, 512K x 36 18Mb S/DCD Sync Burst SRAMs 333 MHz–150 MHz 1.8 V or 2.5 V VDD 1.8 V or 2.5 V I/O Features • FT pin for user-configurable flow through or pipeline operation • Single/Dual Cycle Deselect selectable • IEEE 1149.1 JTAG-compatible Boundary Scan • ZQ mode pin for user-selectable high/low output drive • 1.8 V or 2.5 V core power supply • 1.8 V or 2.
