GU1084 5A Low Dropout Positive Adjustable or Fixed-Mode Regulator

GU1084 Description

ISSUED DATE :2003/06/14 REVISED DATE :2006/03/29E GU1084 5A Low Dropout Positive Adjustable or Fixed-Mode Regulator The GU1084 is a low dropout posit.
Features Package Dimensions 1.

GU1084 Features

* Package Dimensions 1.5V maximum dropout at full load current Built-in thermal shutdown Output current limiting Adjustable output voltage or fixed 1.5V,1.8V,2.5V,3.3V,5.0V Fast transient response Good noise rejection REF. www. DataSheet4U. com A b L4 c L3 L1 E Millimeter REF. Min. Max. 4.40 4.80 c

GU1084 Applications

* such as high speed bus termination and low current 3.3v logic supply. GU1084 is also well suited for other applications such as VGA cards. GU1084 is guaranteed to have lower than 1.5V dropout at full load current making it ideal to provide well regulated outputs of 1.25 to 3.3V with 4.7 to 12V input

📥 Download Datasheet

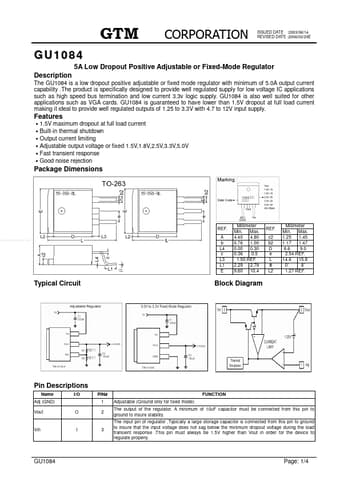

Preview of GU1084 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
GU1084
Manufacturer
GTM
File Size
336.27 KB
Datasheet
GU1084_GTM.pdf
Description
5A Low Dropout Positive Adjustable or Fixed-Mode Regulator
