GS1299, single-chip broadcast FM stereo radio tuner

The GS1299 is a single-chip broadcast FM stereo radio tuner with fully integrated synthesizer, IF selectivity and MPX decoder. The tuner uses the CMOS process, require the least external component. The package size is SOP16 and is completely adjustment-free. All these make it very suitable for porta.

GS1299_GUANGSHIMEI.pdf

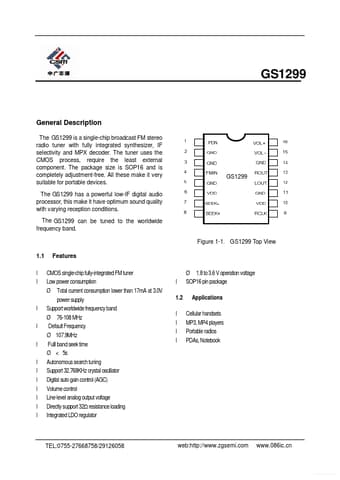

GS1299 Datasheet Preview — Preview of GS1299 PDF

Datasheet Details

Part number:

GS1299

Manufacturer:

GUANGSHIMEI

File Size:

647.09 KB

Description:

single-chip broadcast FM stereo radio tuner

GS1299 Features

* CMOS single-chip fully-integrated FM tuner Low power consumption Ø l l l l l l l l l l Total current consumption lower than 17mA at 3.0V power supply Support worldwide frequency band Ø 76-108 MHz Default Frequency Ø 107.9MHz Fulll band seek time Ø < 5s Autonomous search tuning Support 32.768KHz crys
