HER508G, HER501G 5.0 AMP GLASS PASSIVATED HIGH EFFICIENCY RECTIFIERS

HER508G Description

HER501G THRU HER508G 5.0 AMP GLASS PASSIVATED HIGH EFFICIENCY RECTIFIERS .

HER508G Features

* Low forward voltage drop
* High current capability
* High reliability
* High surge current capability
* High speed switching MECHANICAL DATA
* Case: Molded plastic
* Epoxy: UL 94V-0 rate flame retardant
* Lead: Axial leads, solderable per MIL-STD-202, method 208 gur

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: HER508G, HER501G. Please refer to the document for exact specifications by model.

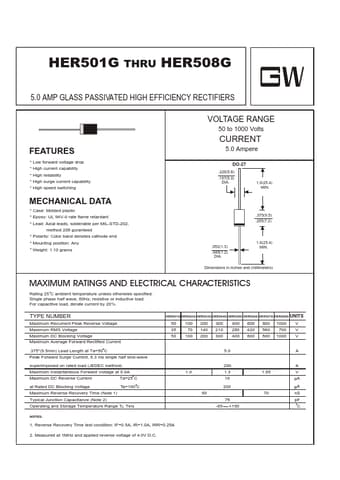

datasheet Preview Page 2

Datasheet Details

Part number
HER508G, HER501G
Manufacturer
GW
File Size
60.49 KB
Datasheet
HER501G-GW.pdf
Description
5.0 AMP GLASS PASSIVATED HIGH EFFICIENCY RECTIFIERS
Note
This datasheet PDF includes multiple part numbers: HER508G, HER501G.
Please refer to the document for exact specifications by model.
