SF67 - 6.0 AMP SUPER FAST RECTIFIERS

Download the SF67 datasheet PDF (SF61 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for 6.0 amp super fast rectifiers.

Features

  • Low forward voltage drop.
  • High current capability.
  • High reliability.
  • High surge current capability.
  • Good for switching mode.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (SF61-GW.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number SF67
Manufacturer GW
File Size 61.63 KB
Description 6.0 AMP SUPER FAST RECTIFIERS
Datasheet download datasheet SF67 Datasheet

📁 Similar Datasheet

  • SF67 - 6.0 AMP SUPER FAST RECTIFIERS (Formosa MS)
  • SF67 - (SF61 - SF68) SUPERFAST RECOVERY RECTIFIERS (HY ELECTRONIC)
  • SF67 - (SF61 - SF68) Super Fast Rectifiers (Taiwan Semiconductor)
  • SF67 - Super Fast Plastic Rectifiers (LRC)
  • SF67 - Super Fast Rectifiers (LGE)
  • SF67 - SUPER FAST RECTIFIER DIODES (EIC)
  • SF6761S - CV/CC Controller (SiFirst)
  • SF6771S - CV/CC Controller (SiFirst)
  • SF6772 - CV/CC Power Switch (SiFirst)
  • SF6772S - Power MOSFET (SiFirst)
Other Datasheets by GW
  • SF61 - 6.0 AMP SUPER FAST RECTIFIERS
  • SF62 - 6.0 AMP SUPER FAST RECTIFIERS
  • SF63 - 6.0 AMP SUPER FAST RECTIFIERS
  • SF64 - 6.0 AMP SUPER FAST RECTIFIERS
  • SF65 - 6.0 AMP SUPER FAST RECTIFIERS
  • SF66 - 6.0 AMP SUPER FAST RECTIFIERS

Full PDF Text Transcription

Click to expand full text

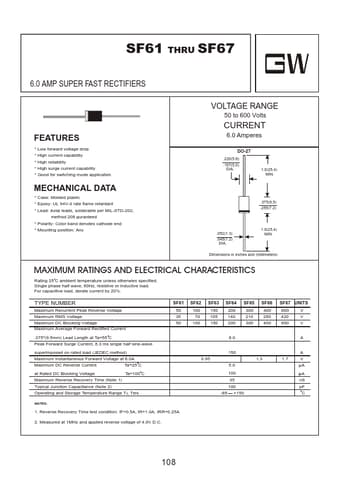

SF61 THRU SF67 6.0 AMP SUPER FAST RECTIFIERS FEATURES * Low forward voltage drop * High current capability * High reliability * High surge current capability * Good for switching mode application MECHANICAL DATA * Case: Molded plastic * Epoxy: UL 94V-0 rate flame retardant * Lead: Axial leads, solderable per MIL-STD-202, method 208 guranteed * Polarity: Color band denotes cathode end * Mounting position: Any VOLTAGE RANGE 50 to 600 Volts CURRENT 6.0 Amperes DO-27 .220(5.6) .197(5.0) DIA. 1.0(25.4) MIN. .375(9.5) .285(7.2) .052(1.3) .048(1.2) DIA. 1.0(25.4) MIN. Dimensions in inches and (millimeters) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Rating 25 C ambient temperature uniess otherwies specified. Single phase half wave, 60Hz, resistive or inductive load.
