SM260A - 2.0 AMP SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS

Download the SM260A datasheet PDF. This datasheet also covers the SM220A variant, as both devices belong to the same 2.0 amp surface mount schottky barrier rectifiers family and are provided as variant models within a single manufacturer datasheet.

Features

  • Ideal for surface mount.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (SM220A-GW.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number SM260A
Manufacturer GW
File Size 55.49 KB
Description 2.0 AMP SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS
Datasheet download datasheet SM260A Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SM260A Schottky Barrier Rectifiers Leshan Radio Company
SM260A Surface Mount Schottky Barrier Rectifiers SeCoS
SM260AF Schottky Barrier Rectifiers SeCoS
SM260AF Schottky Barrier Rectifiers Leshan Radio Company
SM260AM 2.0 AMP Surface Mount Schottky Barrier Rectifiers SeCoS

Other Datasheets by GW

Part Number Description
SM260B 2.0 AMP SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS
SM2100A 2.0 AMP SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS
SM2100B 2.0 AMP SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS
SM220A 2.0 AMP SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS
SM220B 2.0 AMP SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS

Full PDF Text Transcription

Click to expand full text

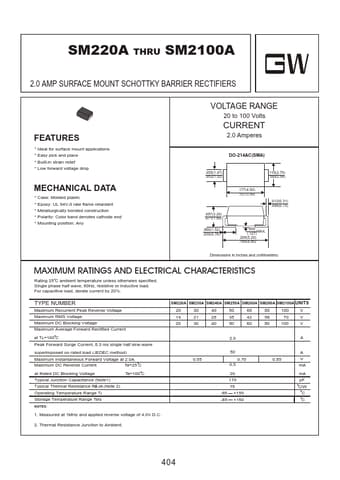

SM220A THRU SM2100A 2.0 AMP SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS FEATURES * Ideal for surface mount applications * Easy pick and place * Built-in strain relief * Low forward voltage drop MECHANICAL DATA * Case: Molded plastic * Epoxy: UL 94V-0 rate flame retardant * Metallurgically bonded construction * Polarity: Color band denotes cathode end * Mounting position: Any VOLTAGE RANGE 20 to 100 Volts CURRENT 2.0 Amperes DO-214AC(SMA) .058(1.47) .052(1.32) .087(2.20) .071(1.80) .060(1.52) .030(0.76) .177(4.50) .157(3.99) .110(2.79) .100(2.54) .012(0.31) .006(0.15) (..010257)MAX. .205(5.20) .189(4.80) Dimensions in inches and (millimeters) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Rating 25 C ambient temperature uniess otherwies specified.
