GBJ25K - Single Phase Glass Passivated Silicon Bridge Rectifier

This page provides the datasheet information for the GBJ25K, a member of the GBJ25J Single Phase Glass Passivated Silicon Bridge Rectifier family.

Datasheet Summary

Features

  • Epoxy Resin material compliant with 94V-0 standards of UL Material Flammability Provisions.
  • Compliant with RoHS Provisions.
  • Single in-line DIP package, compact size.
  • Low forward voltage, high forward current.
  • High surge current capability.
  • Types from 600 V to 1000 V VRRM.
  • Small size, high heat-conducting performance.
  • Thermal welding performance: 260 oC/10 s.
  • Weight: 7.25 g (0.25 Oz).
  • Not ESD Sensitive GBJ.

📥 Download Datasheet

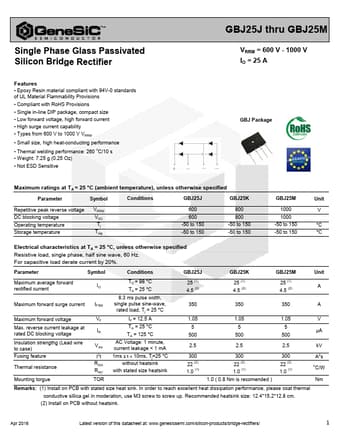

Datasheet preview – GBJ25K
