1SMA4749A - 1W Zener Diode

This page provides the datasheet information for the 1SMA4749A, a member of the 1SMA4735A-Good 1W Zener Diode family.

Datasheet Summary

Features

  • Silicon power zener diodes.
  • For use in stabilizing and clipping circuits with high power rating.
  • Suffix”A” for ±5% tolerance. Package: DO-214AC (SMA) Maximum Rating (TA=25°C unless otherwise specified) Parameter Zener Current Power Dissipation at TL=70°C JunctionTemperature Storage Temperature Range Symbol Ptot TJ TS Value See Next Page 1 150 -55to+150 Unit W °C °C Typical Thermal Resistance (Note1) RθJA RθJL 125 30 Note1: Thermal resistance from junction to ambient &.

📥 Download Datasheet

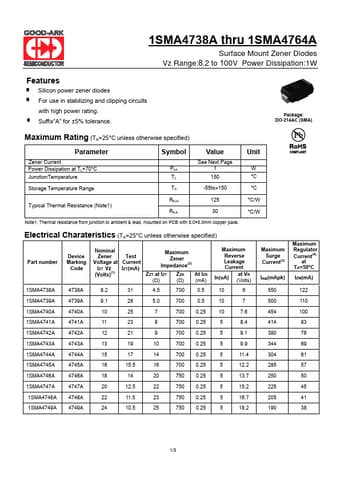

Datasheet preview – 1SMA4749A

Datasheet Details

Part number 1SMA4749A
Manufacturer Good-Ark
File Size 517.14 KB
Description 1W Zener Diode
Datasheet download datasheet 1SMA4749A Datasheet
Additional preview pages of the 1SMA4749A datasheet.

📁 Similar Datasheet

  • 1SMA4749A - SURFACE ZENER DIODE (RFE)
  • 1SMA4749A - 1.0W SURFACE MOUNT ZENER DIODE (Won-Top)
  • 1SMA4749A - Surface Mount Zener Diodes (EIC)
  • 1SMA4749A - 1W Zener Diodes (SEMITECH)
  • 1SMA4749A - Surface Mount Zener Diodes (JGD)
  • 1SMA4749A - Surface Mount Glass Passivated Chip Junction Zener Diodes (MIC)
  • 1SMA4749 - SURFACE MOUNT ZENER DIODE (SMC Diode)
  • 1SMA4749 - 1.0Watts Surface Mount Silicon Zener Diode (LGE)
  • 1SMA4749 - 1.0 Watt Surface Mount Silicon Zener Diodes (Taiwan Semiconductor)
  • 1SMA4749 - SURFACE MOUNT SILICON ZENER DIODE (CDIL)
Other Datasheets by Good-Ark

Full PDF Text Transcription

Click to expand full text
1SMA4738A thru 1SMA4764A Surface Mount Zener Diodes Vz Range:8.2 to 100V Power Dissipation:1W Features ■ Silicon power zener diodes ■ For use in stabilizing and clipping circuits with high power rating. ■ Suffix”A” for ±5% tolerance. Package: DO-214AC (SMA) Maximum Rating (TA=25°C unless otherwise specified) Parameter Zener Current Power Dissipation at TL=70°C JunctionTemperature Storage Temperature Range Symbol Ptot TJ TS Value See Next Page 1 150 -55to+150 Unit W °C °C Typical Thermal Resistance (Note1) RθJA RθJL 125 30 Note1: Thermal resistance from junction to ambient & lead, mounted on PCB with 5.0×5.
