Guangzhou Juxing Electronic

DSF1D Datasheet Preview

DSF1D Datasheet

Surface Mount Standard Rectifiers

No Preview Available !

Major Ratings and Characteristics
IF(AV)
VRRM
IFSM
IR
VF
1.0 A
50 V to 600 V
25 A
5 μA
0.95V,1.25V,1.70V
Tj max.
150 °C
Features
Low profile space
Ideal for automated placement
Glass passivated chip junctions
Low forward voltage drop
Low leakage current
High forward surge capability
High temperature soldering
260/10 seconds at terminals
Component in accordance to
RoHS 2002/95/1 and WEEE 2002/96/EC
Mechanical Date
Case: JEDEC SOD-123FL molded plastic
body over glass passivated chip
Terminals: Solder plated, solderable per
J-STD-002B and JESD22-B102D
Polarity: Laser band denotes cathode end
Weight: 0.017gram

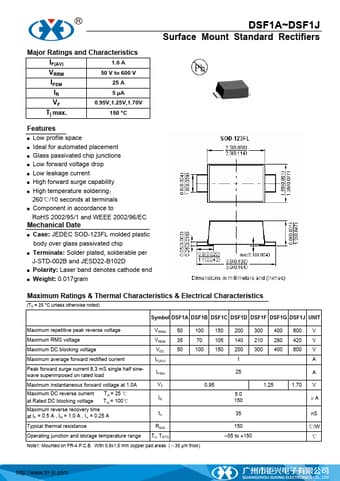

DSF1A~DSF1J
Surface Mount Standard Rectifiers
Maximum Ratings & Thermal Characteristics & Electrical Characteristics
(TA = 25 °C unless otherwise noted)
Symbol DSF1A DSF1B DSF1C DSF1D DSF1F DSF1G DSF1J UNIT
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
Peak forward surge current 8.3 mS single half sine-
wave superimposed on rated load
VRRM
VRMS
VDC
IF(AV)
IFSM
50
35
50
100 150 200 300 400
70 105 140 210 280
100 150 200 300 400
1
25
Maximum instantaneous forward voltage at 1.0A
Maximum DC reverse current
at Rated DC blocking voltage
TA = 25
TA = 100
Maximum reverse recovery time
at IF = 0.5 A , IR = 1.0 A , Irr = 0.25 A
Typical thermal resistance
Operating junction and storage temperature range
VF
IR
trr
RθJA
TJ, TSTG
0.95
5.0
150
35
150
–55 to +150
1.25
Note1: Mounted on FR-4 P.C.B. With 0.9x1.5 mm copper pad areas (35 μm thick)
600 V
420 V
600 V
A
A
1.70 V
μA
nS
/W
http://www.trr-jx.com




Guangzhou Juxing Electronic

DSF1D Datasheet Preview

DSF1D Datasheet

Surface Mount Standard Rectifiers

No Preview Available !

DSF1A~DSF1J
Surface Mount Standard Rectifiers
Characteristic Curves (TA=25 unless otherwise noted)
http://www.trr-jx.com
