BTA80-1600 - TRIACs

This page provides the datasheet information for the BTA80-1600, a member of the BTA80-600B TRIACs family.

Description

Main terminal 1 Gate Main terminal 2 ---- Description - Practicality in Pin Arrange Pin Polarity Circuit diagram 1=T1 2= 3= G 4=T2 5=Tab 5 Tab 4 3 2 1 ABSOLUTE RATINGs (Limiting Values)【】 Paramenter & Test Conditions : On-State RMS Current ( full sine wave,TC=80°C) : Non repeti

📥 Download Datasheet

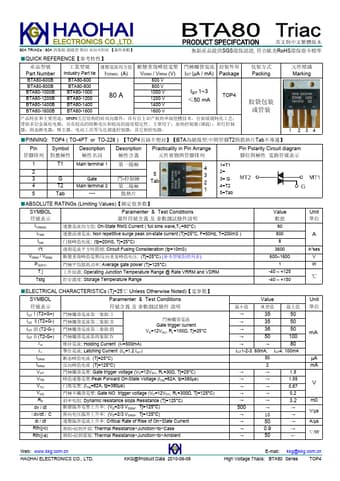

Datasheet preview – BTA80-1600

Datasheet Details

Part number BTA80-1600
Manufacturer HAOHAI
File Size 631.69 KB
Description TRIACs
Datasheet download datasheet BTA80-1600 Datasheet
Additional preview pages of the BTA80-1600 datasheet.

📁 Similar Datasheet

  • BTA80-800B - Thyristor (INCHANGE)
  • BTA854W - Transistor (TY Semiconductor)
  • BTA04 - SENSITIVE GATE TRIACS (STMicroelectronics)
  • BTA04 - Triac (INCHANGE)
  • BTA04 - SENSITIVE GATE TRIACS (COMSET)
  • BTA04 - Triac (CDIL)
  • BTA04 - SENSITIVE GATE TRIAC (Unisonic Technologies)
  • BTA04-400 - SENSITIVE GATE TRIACS (STMicroelectronics)
  • BTA04-400 - SENSITIVE GATE TRIACS (COMSET)
  • BTA04-400A - SENSITIVE GATE TRIACS (STMicroelectronics)
Other Datasheets by HAOHAI

Full PDF Text Transcription

Click to expand full text
80A TRIACs : 80A 【】 SGS, RoHS VDRM / VRRM (V) 600 V 800 V 1000 V 1200 V 1400 V 1600 V ■QUICK REFERENCE【】 Part Number BTA80-600B BTA80-800B BTA80-1000B BTA80-1200B BTA80-1400B BTA80-1600B Industry Part № BTA80-600 BTA80-800 BTA80-1000 BTA80-1200 BTA80-1400 BTA80-1600 IT(RMS) (A) IGT (µA / mA) Package Packing Marking 80 A IGT 1~3 ≤50 mA TOP4 1 2 3 4 ：NPNPN；，； ；。：()； ；；、；。 ■PINNING: TOP4 ( TO-4PT or TO-228 ) 【TOP4】【BTA:T2Tab】 Pin 1 2 3 4 5 SYMBOL IT(RMS) ITSM IGM I2t VDRM / VRRM PG(AV) Tj Tstg Symbol T1 G T2 Tab Description Main terminal 1 Gate Main terminal 2 ---- Description - Practicality in Pin Arrange Pin Polarity Circuit diagram 1=T1 2= 3= G 4=T2 5=Tab 5 Tab 4 3 2 1 ■ABSOLUTE RATINGs (Limiting Values)【】 Paramenter & Test Conditions : On
