TYN612, SCRs

Glass passivated, sensitive gate thyristors in a plastic envelope, intended for use in general purpose switching and phase control applications. These devices are intended to be interfaced directly to microcontrollers, logic integrated circuits and other low power gate trigger circuits. Symbol Sim.

TYN612-HAOPIN.pdf

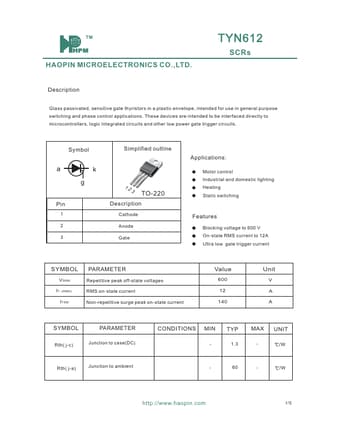

TYN612 Datasheet Preview — Preview of TYN612 PDF

Datasheet Details

Part number:

TYN612

Manufacturer:

HAOPIN

File Size:

345.44 KB

Description:

SCRs

TYN612 Features

* Blocking voltage to 600 V On-state RMS current to 12A Ultra low gate trigger current SYMBOL PARAMETER VDRM Repetitive peak off-state voltages IT RMS RMS on-state current ITSM Non-repetitive surge peak on-state current Value 600 12 140 Unit V A A SYMBOL PARAMETER Rth( j-c) Junction to cas
