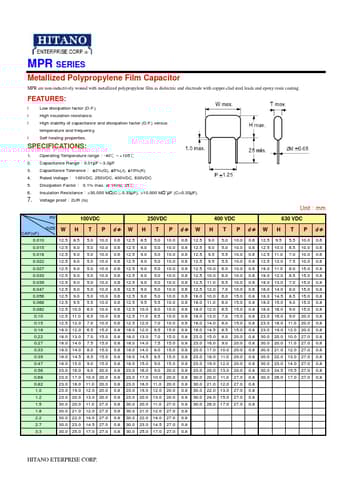

MPR
FEATURES
: l Low dissipation factor (D.F.) l High insulation resistance. l High stability of capacitance and dissipation factor (D.F.) versus temperature and frequency. l Self healing properties.
SPECIFICATIONS:
1. Operating Temperature range：-40℃～+105℃ 2. Capacitance Range：0.01μF～3.3μF 3. Capacitance Tolerance： ±2%(G), ±5%(J), ±10%(K) 4. Rated Voltage： 100VDC, 250VDC, 400VDC, 630VDC 5. Dissipation Factor： 0.1% max. at 1KHz, 25℃ 6. Insulation Resistance：>30,000 MΩ(C≦0.33μF), >10,000 MΩ˙μF (C>0.33μF).
7. Voltage proof：2UR (Is)
Unit：mm
RV 100VDC
250VDC
400 VDC
630 VDC
SIZE W H T P d Φ W H T P d Φ W H T P d Φ W H T P d Φ
CAP(u F)
12.5 8.5 5.0 10.0 0.6 12.5 8.5 5.0 10.0 0.6 12.5 9.0 5.0 10.0 0.6 12.5 9.5 5.5 10.0 0.6
12.5 9.0...
