1N5398 - PLASTIC SILICON RECTIFIERS

This page provides the datasheet information for the 1N5398, a member of the 1N5391 PLASTIC SILICON RECTIFIERS family.

Datasheet Summary

Features

  • Low cost.
  • Diffused junction.
  • Low forward voltage drop.
  • Low reverse leakage current.
  • High current capability.
  • The plastic material carries UL recognition 94V-0 1N5391 thru 1N5399.

📥 Download Datasheet

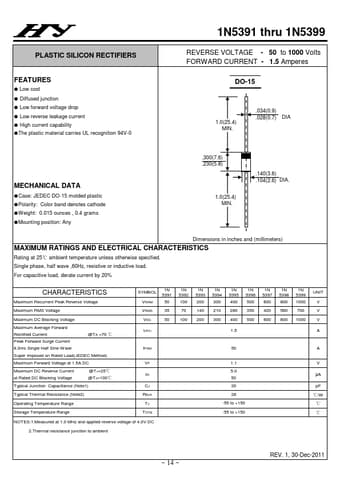

Datasheet preview – 1N5398

Datasheet Details

Part number 1N5398
Manufacturer HY
File Size 28.70 KB
Description PLASTIC SILICON RECTIFIERS
Datasheet download datasheet 1N5398 Datasheet
Additional preview pages of the 1N5398 datasheet.

📁 Similar Datasheet

  • 1N5398 - SILICON RECTIFIER (DC COMPONENTS)
  • 1N5398 - SILICON RECTIFIER (Rectron)
  • 1N5398 - GENERAL PURPOSE PLASTIC RECTIFIER (General Semiconductor)
  • 1N5398 - 1.5A RECTIFIER (Diodes Incorporated)
  • 1N5398 - 1.5 Amp Rectifier (Micro Commercial Components)
  • 1N5398 - 1.5 AMP SILICON RECTIFIERS (Formosa MS)
  • 1N5398 - Silicon Rectifiers (Diotec Semiconductor)
  • 1N5398 - 1.5 Amps. Silicon Rectifiers (JGD)
  • 1N5398 - AXIAL LEADED SILICON RECTIFIER DIODES (Sunmate)
  • 1N5398 - 1.5A STANDARD DIODE (WON-TOP)
Other Datasheets by HY
  • 1N5398G - GLASS PASSIVATED RECTIFIERS
  • 1N5391 - PLASTIC SILICON RECTIFIERS
  • 1N5391G - GLASS PASSIVATED RECTIFIERS
  • 1N5392 - PLASTIC SILICON RECTIFIERS
  • 1N5392G - GLASS PASSIVATED RECTIFIERS
  • 1N5393 - PLASTIC SILICON RECTIFIERS
  • 1N5393G - GLASS PASSIVATED RECTIFIERS
  • 1N5394 - PLASTIC SILICON RECTIFIERS

Full PDF Text Transcription

Click to expand full text
PLASTIC SILICON RECTIFIERS FEATURES ● Low cost ● Diffused junction ● Low forward voltage drop ● Low reverse leakage current ● High current capability ●The plastic material carries UL recognition 94V-0 1N5391 thru 1N5399 REVERSE VOLTAGE - 50 to 1000 Volts FORWARD CURRENT - 1.5 Amperes DO-15 1.0(25.4) MIN. .034(0.9) .028(0.7) DIA MECHANICAL DATA ●Case: JEDEC DO-15 molded plastic ●Polarity: Color band denotes cathode ●Weight: 0.015 ounces , 0.4 grams ●Mounting position: Any .300(7.6) .230(5.8) 1.0(25.4) MIN. .140(3.6) .104(2.6) DIA. Dimensions in inches and (millimeters) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Rating at 25℃ ambient temperature unless otherwise specified. Single phase, half wave ,60Hz, resistive or inductive load.
