DF1506 - Glass Passivated Bridge Rectifiers

This page provides the datasheet information for the DF1506, a member of the DF15005 Glass Passivated Bridge Rectifiers family.

Datasheet Summary

Features

  • Glass passivated chip.
  • High surge forward current capability.
  • Reliable low cost construction utilizing molded plastic technique.
  • Lead tin plated copper Reverse Voltage - 50 to 1000 Volts 50-1000V Forward Current - 1.5 Amperes 1.5A DF Pb RoHS.

📥 Download Datasheet

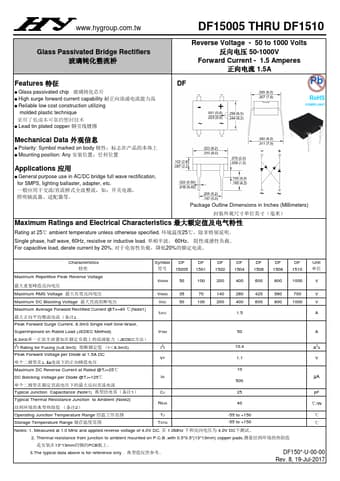

Datasheet preview – DF1506

Datasheet Details

Part number DF1506
Manufacturer HY
File Size 165.44 KB
Description Glass Passivated Bridge Rectifiers
Datasheet download datasheet DF1506 Datasheet
Additional preview pages of the DF1506 datasheet.

📁 Similar Datasheet

  • DF1506 - Miniature Glass Passivated Single-Phase Bridge Rectifier (GOOD-ARK)
  • DF1506 - 1.5A Single-Phase Glass Passivated Bridge Rectifiers (SEP ELECTRONIC)
  • DF1506 - GLASS PASSIVATED BRIDGE RECTIFIER (ZOWIE)
  • DF1506 - Single-Phase Bridge Rectifiers (Formosa MS)
  • DF1506 - GLASS PASSIVATED BRIDGE RECTIFIERS (KD)
  • DF1506 - Glass Passivated Bridge Rectifier (Eris)
  • DF1506 - GLASS PASSIVATED BRIDGE RECTIFIER (JINAN JINGHENG ELECTRONICS)
  • DF1506-S - SMD Bridge Rectifier (Formosa MS)
  • DF1506H - GLASS PASSIVATED BRIDGE RECTIFIER (Zowie Technology)
  • DF1506M - 1.5A Glass Passivated Bridge Rectifier (TAITRON)
Other Datasheets by HY
  • DF1506S - SURFACE MOUNT GLASS PASSIVATED BRIDEG RECTIFIERS
  • DF15005 - Glass Passivated Bridge Rectifiers
  • DF15005S - SURFACE MOUNT GLASS PASSIVATED BRIDEG RECTIFIERS
  • DF1501 - Glass Passivated Bridge Rectifiers
  • DF1501S - SURFACE MOUNT GLASS PASSIVATED BRIDEG RECTIFIERS
  • DF1502 - Glass Passivated Bridge Rectifiers
  • DF1502S - SURFACE MOUNT GLASS PASSIVATED BRIDEG RECTIFIERS
  • DF1504 - Glass Passivated Bridge Rectifiers

Full PDF Text Transcription

Click to expand full text
www.hygroup.com.tw DF15005 THRU DF1510 Glass Passivated Bridge Rectifiers Features ● Glass passivated chip ● High surge forward current capability ● Reliable low cost construction utilizing molded plastic technique ● Lead tin plated copper Reverse Voltage - 50 to 1000 Volts 50-1000V Forward Current - 1.5 Amperes 1.5A DF Pb RoHS COMPLIANT Mechanical Data ● Polarity: Symbol marked on body ： ● Mounting position: Any ： Applications ● General purpose use in AC/DC bridge full wave rectification, for SMPS, lighting ballaster, adapter, etc.
