HER203, HER201 HIGH EFFICIENCY RECTIFIERS

HER203 Description

HER20X / UF200X SERIES HIGH EFFICIENCY (ULTRA FAST) RECTIFIERS REVERSE VOLTAGE - 50 to 1000 Volts FORWARD CURRENT - 2.0 Amperes .

HER203 Features

* Low cost
* Diffused junction
* Ultra fast switching for high efficiency
* Low reverse leakage current
* Low forward voltage drop
* High current capability
* The plastic material carries UL recognition 94V-0 MECHANICAL DATA
* Case: JEDEC DO-15 molded plastic
* Pola

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: HER203, HER201. Please refer to the document for exact specifications by model.

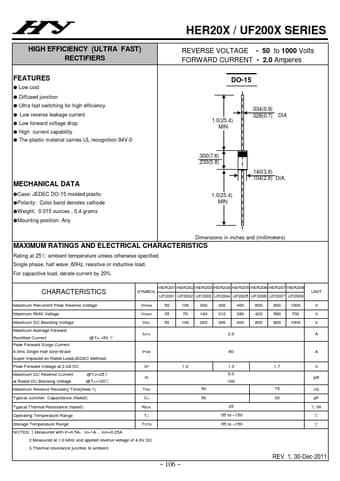

datasheet Preview Page 2

Datasheet Details

Part number
HER203, HER201
Manufacturer
HY
File Size
29.18 KB
Datasheet
HER201-HY.pdf
Description
HIGH EFFICIENCY RECTIFIERS
Note
This datasheet PDF includes multiple part numbers: HER203, HER201.
Please refer to the document for exact specifications by model.
