RS3AB - SURFACE MOUNT FAST RECOVERY GLASS PASSIVATED RECTIFIERS

Datasheet Summary

Features

  • Fast switching for high efficiency.
  • Low cost.
  • Diffused junction.
  • Low reverse leakage current.
  • Low forward voltage drop.
  • High current capability.
  • The plastic material carries UL recognition 94V-0 RS3AB thru RS3MB.

📥 Download Datasheet

Datasheet preview – RS3AB

Datasheet Details

Part number RS3AB
Manufacturer HY
File Size 130.61 KB
Description SURFACE MOUNT FAST RECOVERY GLASS PASSIVATED RECTIFIERS
Datasheet download datasheet RS3AB Datasheet
Additional preview pages of the RS3AB datasheet.

📁 Similar Datasheet

  • RS3AB - Surface Mount Rectifiers (LGE)
  • RS3AB - Surface Mount Rectifiers (GME)
  • RS3AB - SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES (Sunmate)
  • RS3AB - SURFACE MOUNT FAST RECOVERY RECTIFIERS (LITE-ON)
  • RS3AB - SURFACE MOUNT FAST RECOVERY RECTIFIER (MEI SEMI)
  • RS3AB - Surface Mount Fast Recovery Rectifiers (Jingdao Microelectronics)
  • RS3AB - 3.0A SURFACE MOUNT FAST RECOVERY RECTIFIER (DIODES)
  • RS3AB - Ultra-Fast Recovery Rectifier Diode (Semiware)
  • RS3ABF - SURFACE MOUNT FAST RECOVERY RECTIFIER (Hottech)
  • RS3ABF - Surface Mount Fast Recovery Rectifier (SEMTECH)
Other Datasheets by HY
  • RS3BB - SURFACE MOUNT FAST RECOVERY GLASS PASSIVATED RECTIFIERS
  • RS3DB - SURFACE MOUNT FAST RECOVERY GLASS PASSIVATED RECTIFIERS
  • RS3GB - SURFACE MOUNT FAST RECOVERY GLASS PASSIVATED RECTIFIERS
  • RS3JB - SURFACE MOUNT FAST RECOVERY GLASS PASSIVATED RECTIFIERS
  • RS3KB - SURFACE MOUNT FAST RECOVERY GLASS PASSIVATED RECTIFIERS
  • RS3MB - SURFACE MOUNT FAST RECOVERY GLASS PASSIVATED RECTIFIERS

Full PDF Text Transcription

Click to expand full text

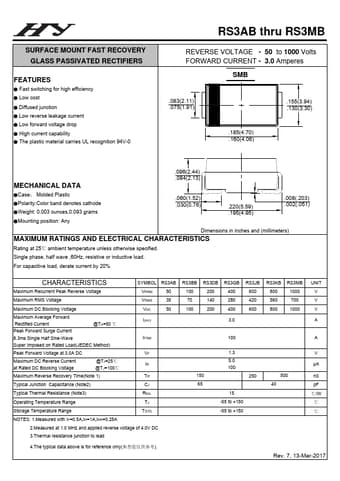

SURFACE MOUNT FAST RECOVERY GLASS PASSIVATED RECTIFIERS FEATURES ● Fast switching for high efficiency ● Low cost ● Diffused junction ● Low reverse leakage current ● Low forward voltage drop ● High current capability ● The plastic material carries UL recognition 94V-0 RS3AB thru RS3MB REVERSE VOLTAGE - 50 to 1000 Volts FORWARD CURRENT - 3.0 Amperes SMB .083(2.11) .075(1.91) .155(3.94) .130(3.30) .185(4.70) .160(4.06) MECHANICAL DATA .096(2.44) .084(2.13) ●Case： Molded Plastic ●Polarity:Color band denotes cathode ●Weight: 0.003 ounces,0.093 grams ●Mounting position: Any .060(1.52) .030(0.76) .220(5.59) .195(4.95) .008(.203) .002(.
