HX121WX1-121 TFT LCD

HX121WX1-121 Description

PROPRIETARY NOTE THIS SPECIFICATION IS THE PROPERTY OF HYDIS AND SHALL NOT BE REPRODUCED OR COPIED WITHOUT THE WRITTEN PERMISSION OF HYDIS AND MUST BE.
OF CHANGES. Initial Release DATE ‘10.

HX121WX1-121 Features

* z Thin and Light Weight z 3.3 V Logic Power Supply z 12V Back-light Power Supply z 1 lane eDP Interface z SMD LED (48EA) Array (Bottom Side/Horizontal Direction) z 262,144 Colors z Data Enable Signal Mode z Side Mounting Frame z Green Product (RoHS) SPEC. NUMBER S864-1429 SPEC TITLE HX121WX1-121 P

📥 Download Datasheet

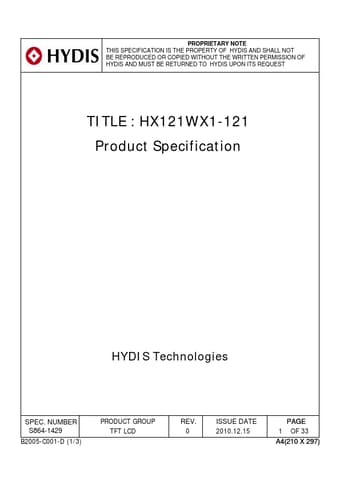

Preview of HX121WX1-121 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HX121WX1-121
Manufacturer
HYDIS
File Size
757.94 KB
Datasheet
HX121WX1-121-HYDIS.pdf
Description
TFT LCD
