BR1001 - Silicon Bridge Rectifiers

Download the BR1001 datasheet PDF. This datasheet also covers the BR10005 variant, as both devices belong to the same silicon bridge rectifiers family and are provided as variant models within a single manufacturer datasheet.

Features

  • Low forward voltage drop.
  • Electrically isolated base -2000 Volts 2000V.
  • High surge forward current capability.
  • Materials used carries U/L recognition UL Mechanical Data.
  • Polarity: Symbol Marked on body ：.
  • Mounting position: Any ：.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (BR10005-HYELECTRONIC.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number BR1001
Manufacturer HY ELECTRONIC
File Size 243.27 KB
Description Silicon Bridge Rectifiers
Datasheet download datasheet BR1001 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BR1001 Bridge Rectifier Formosa MS
BR1001 SINGLE-PHASE SILICON BRIDGE RECTIFIER Sunmate
BR1001 Bridge Rectifier Formosa MS
BR1001 Silicon Bridge Rectifiers GME
BR1001 SILICON BRIDGE RECTIFIERS GALAXY ELECTRICAL

Other Datasheets by HY ELECTRONIC

Part Number Description
BR1001SG (BR10005SG - BR1010SG) GLASS PASSIVATED BRIDGE RECTIFIERS
BR1001W Silicon Bridge Rectifiers
BR10005 Silicon Bridge Rectifiers
BR10005SG (BR10005SG - BR1010SG) GLASS PASSIVATED BRIDGE RECTIFIERS
BR10005W Silicon Bridge Rectifiers

Full PDF Text Transcription

Click to expand full text

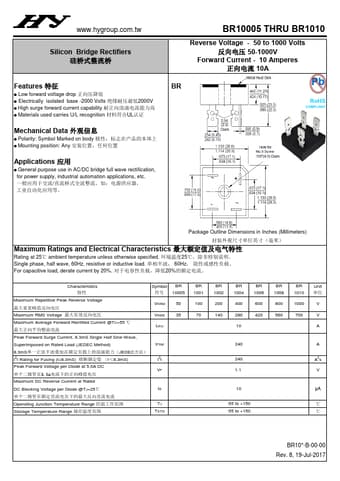

www.hygroup.com.tw Silicon Bridge Rectifiers Features ● Low forward voltage drop ● Electrically isolated base -2000 Volts 2000V ● High surge forward current capability ● Materials used carries U/L recognition UL Mechanical Data ● Polarity: Symbol Marked on body ： ● Mounting position: Any ： Applications ● General purpose use in AC/DC bridge full wave rectification, for power supply, industrial automation applications, etc.
