RS507 - SILICON BRIDGE RECTIFIERS

Features

  • Plastic material used carries UL recognition 94V-0.
  • High surge current capability.
  • Ldeal for printed circuit board.
  • Typical IR less than 1mA www. DataSheet4U. com.
  • Built-in printed board stand offs.
  • High temperature soldering guaranteed: .846(21.5) .807(20.5) .886(22.5) .825(21.0) .042(1.07) DIA .038(0.97) 1.00 MIN. (25.4) 250℃ for 5 seconds .400 .354 (10.2) (9.0) .295(7.5) .256(6.5) .300 .285 (7.6) (7.2) .300 .285 (7.6) (7.2) .365 .345 (9.3) (8.8) .195(5.0) .180.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (RS507_HYELECTRONIC.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number RS507
Manufacturer HY ELECTRONIC
File Size 76.60 KB
Description SILICON BRIDGE RECTIFIERS
Datasheet download datasheet RS507 Datasheet
Additional preview pages of the RS507 datasheet.

📁 Similar Datasheet

  • RS507 - SINGLE-PHASE SILICON BRIDGE RECTIFIER (GOOD-ARK Electronics)
  • RS507 - SINGLE-PHASE SILICON BRIDGE RECTIFIER (Dc Components)
  • RS501 - SINGLE-PHASE SILICON BRIDGE (GOOD-ARK Electronics)
  • RS501 - SINGLE-PHASE SILICON BRIDGE RECTIFIER (Dc Components)
  • RS502 - SINGLE-PHASE SILICON BRIDGE RECTIFIER (GOOD-ARK Electronics)
  • RS502 - SINGLE-PHASE SILICON BRIDGE RECTIFIER (Dc Components)
  • RS503 - SINGLE-PHASE SILICON BRIDGE RECTIFIER (GOOD-ARK Electronics)
  • RS503 - SINGLE-PHASE SILICON BRIDGE RECTIFIER (Dc Components)
  • RS504 - SINGLE-PHASE SILICON BRIDGE RECTIFIER (GOOD-ARK Electronics)
  • RS504 - SINGLE-PHASE SILICON BRIDGE RECTIFIER (Dc Components)
Other Datasheets by HY ELECTRONIC

    Full PDF Text Transcription

    Click to expand full text

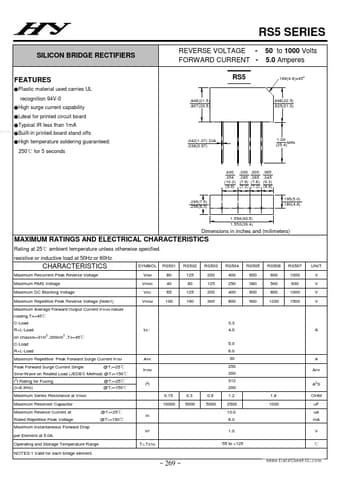

    RS5 SERIES SILICON BRIDGE RECTIFIERS REVERSE VOLTAGE FORWARD CURRENT RS5 50 to 1000 Volts 5.0 Amperes .188(4.8)x45° FEATURES ●Plastic material used carries UL recognition 94V-0 ●High surge current capability ●Ldeal for printed circuit board ●Typical IR less than 1mA www.DataSheet4U.com ●Built-in printed board stand offs ●High temperature soldering guaranteed: .846(21.5) .807(20.5) .886(22.5) .825(21.0) .042(1.07) DIA .038(0.97) 1.00 MIN. (25.4) 250℃ for 5 seconds .400 .354 (10.2) (9.0) .295(7.5) .256(6.5) .300 .285 (7.6) (7.2) .300 .285 (7.6) (7.2) .365 .345 (9.3) (8.8) .195(5.0) .180(4.6) 1.594(40.5) 1.550(39.4) Dimensions in inches and (milimeters) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Rating at 25℃ ambient temperature unless otherwise specified.
