C7300-10 - High Performance Digital CCD Camera

Description

The C7300 can be set to readout sub-arrays of 1280 pixels by multiples of 16 lines by computer command.

Up to 8 sub-arrays may be selected from frame to frame at maximum frame rate.

Camera head (app

Features

  • MAX 250 Hz readout (1280 × 16) ROI readout function Random scan function 2 × 2 binning 1.3M pixels MAX 12-bit output UV option (down to 193 nm) 60 nsec ultra fast imaging 1/10,000 to 1 second integration 15 electrons readout noise ❚.

📥 Download Datasheet

Datasheet Details

Part number C7300-10
Manufacturer Hamamatsu Corporation
File Size 105.10 KB
Description High Performance Digital CCD Camera
Datasheet download datasheet C7300-10 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
C732TM 2SC732TM Toshiba
C733 2SC733 ETC
C734 Silicon NPN Transistor NEC
C735 2SC735 Toshiba

Other Datasheets by Hamamatsu Corporation

Part Number Description
C7339 Position Sensor
C7390 X-Ray Line Sensor Camera
C7390-xx X-Ray Line Sensor Camera

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

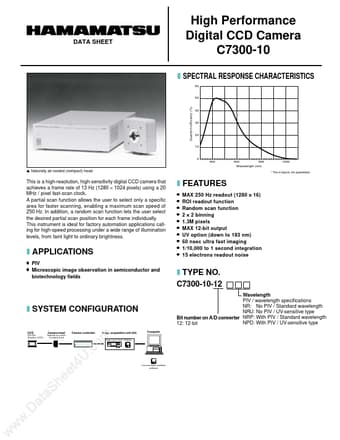

www.DataSheet4U.com DATA SHEET High Performance Digital CCD Camera C7300-10 ❚ SPECTRAL RESPONSE CHARACTERISTICS 60 50 Quantum efficiency (%) 40 30 20 10 0 400 600 800 Wavelength (nm) 1000 * This is typical, not guaranteed. v Naturally air-cooled (compact) head This is a high-resolution, high-sensitivity digital CCD camera that achieves a frame rate of 13 Hz (1280 × 1024 pixels) using a 20 MHz / pixel fast-scan clock. A partial scan function allows the user to select only a specific area for faster scanning, enabling a maximum scan speed of 250 Hz. In addition, a random scan function lets the user select the desired partial scan position for each frame individually.
