C9312SK-06 - Flat panel sensor

Features

  • www. DataSheet4U. com.

📥 Download Datasheet

Datasheet Details

Part number C9312SK-06
Manufacturer Hamamatsu Corporation
File Size 139.59 KB
Description Flat panel sensor
Datasheet download datasheet C9312SK-06 Datasheet

📁 Similar Datasheet

  • C930 - 2SC930 (Sanyo Semicon Device)
  • C937 - 2SC937 (ETC)
Other Datasheets by Hamamatsu Corporation
  • C9311DK - Flat panel sensor
  • C9303-03 - Color sensor module RGB-LED backlight monitor
  • C9303-04 - Color sensor module RGB-LED backlight monitor
  • C9329 - Photosensor amplifier

Full PDF Text Transcription

Click to expand full text

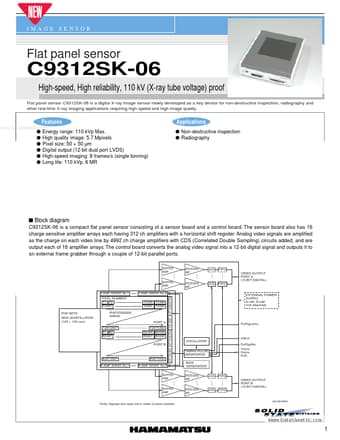

IMAGE SENSOR Flat panel sensor C9312SK-06 High-speed, High reliability, 110 kV (X-ray tube voltage) proof Flat panel sensor C9312SK-06 is a digital X-ray image sensor newly developed as a key device for non-destructive inspection, radiography and other real-time X-ray imaging applications requiring high-speed and high image quality. Features www.DataSheet4U.com Applications l Energy range: 110 kVp Max. l High quality image: 5.7 Mpixels l Pixel size: 50 × 50 µm l Digital output (12-bit dual port LVDS) l High-speed imaging: 8 frames/s (single binning) l Long life: 110 kVp, 6 MR l Non-destructive inspection l Radiography s Block diagram C9312SK-06 is a compact flat panel sensor consisting of a sensor board and a control board.
