HSD156JUW2-A12 Color TFT-LCD

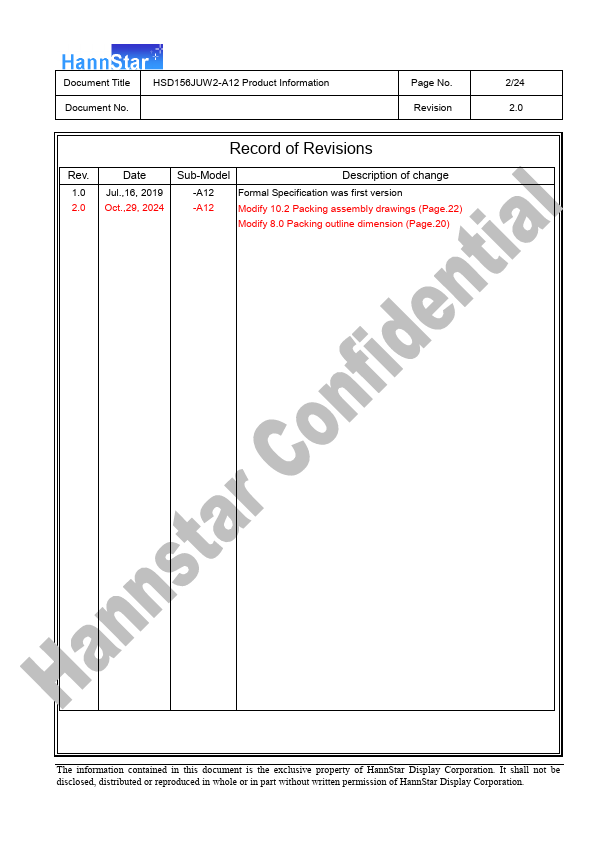

of change -A12 Formal Specification was first version -A12 Modify 10.2 Packing assembly drawings (Page.22) Modify 8.0 Packing outline dimension (Page.20) The information contained in this document is the exclusive property of HannStar Display Corporation. It shall not be disclosed, distributed o.

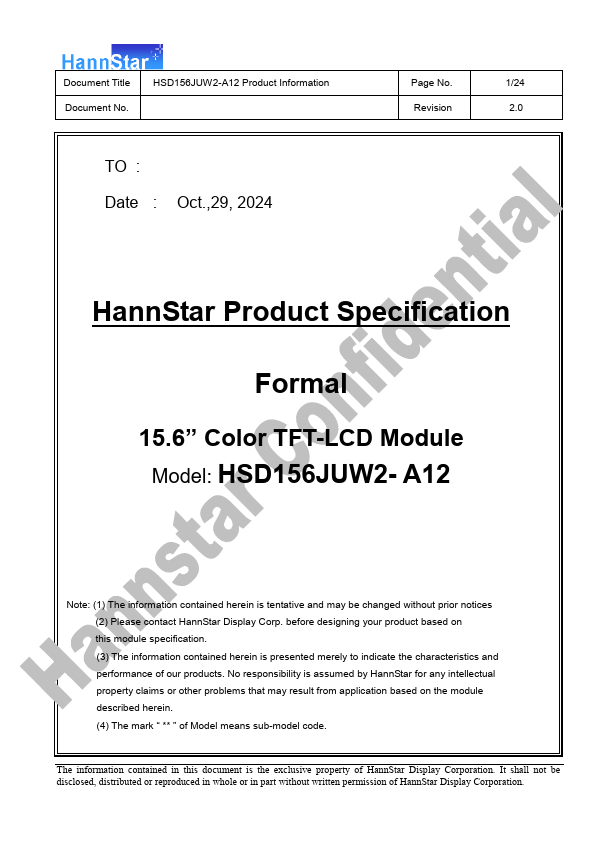

Document Title Document No. HSD156JUW2-A12 Product Information TO : Date : Oct.,29, 2024 Page No. 1/24 Revision 2.0 HannStar Product Specification Formal 15.6” Color TFT-LCD Module Model: HSD156JUW2- A12 Note: (1) The information contained herein is tentative and may be changed without prior notices (2) Please contact HannStar Display Corp. before designing your product based on this module specification. (3) The information contained herein is presented merely to indicate the characteri.

HSD156JUW2-A12 Features

* 15.6 (16:9 diagonal) inch configuration

* Two channel LVDS interface

* 16.7M color by 8 bit R.G.B signal input

* RoHS Compliance

* Halogen Free 1.3 Applications

* TFT LCD Monitor

* Industrial Application

* Amusement

* Vehicle / Automotive 1.4 General informati

HSD156JUW2-A12-HannStar.pdf

HSD156JUW2-A12 Datasheet Preview — Preview of HSD156JUW2-A12 PDF

Datasheet Details

Part number:

HSD156JUW2-A12

Manufacturer:

HannStar

File Size:

1.26 MB

Description:

Color tft-lcd.
