HZK22 - Silicon Epitaxial Planar Zener Diodes

This page provides the datasheet information for the HZK22, a member of the HZK2B Silicon Epitaxial Planar Zener Diodes family.

Datasheet Summary

Features

  • Low leakage, low zener impedance and maximum power dissipation of 500mW.
  • Wide spectrum from 1.9V through 38V of zener voltage provide flexible.

📥 Download Datasheet

Datasheet preview – HZK22

Datasheet Details

Part number HZK22
Manufacturer Hitachi
File Size 33.24 KB
Description Silicon Epitaxial Planar Zener Diodes
Datasheet download datasheet HZK22 Datasheet
Additional preview pages of the HZK22 datasheet.

📁 Similar Datasheet

  • HZK22 - Silicon Epitaxial Planar Zener Diodes (JGD)
  • HZK22L - ZENER DIODES (EIC)
  • HZK20 - Silicon Epitaxial Planar Zener Diodes (JGD)
  • HZK20L - ZENER DIODES (EIC)
  • HZK24 - Silicon Epitaxial Planar Zener Diodes (JGD)
  • HZK24L - ZENER DIODES (EIC)
  • HZK27 - Silicon Epitaxial Planar Zener Diodes (JGD)
  • HZK27L - ZENER DIODES (EIC)
  • HZK2B - Silicon Epitaxial Planar Zener Diodes (JGD)
  • HZK2C - Silicon Epitaxial Planar Zener Diodes (JGD)
Other Datasheets by Hitachi
  • HZK20 - Silicon Epitaxial Planar Zener Diodes
  • HZK24 - Silicon Epitaxial Planar Zener Diodes
  • HZK27 - Silicon Epitaxial Planar Zener Diodes
  • HZK2B - Silicon Epitaxial Planar Zener Diodes
  • HZK2C - Silicon Epitaxial Planar Zener Diodes
  • HZK11A - Silicon Epitaxial Planar Zener Diodes
  • HZK11B - Silicon Epitaxial Planar Zener Diodes
  • HZK11C - Silicon Epitaxial Planar Zener Diodes

Full PDF Text Transcription

Click to expand full text

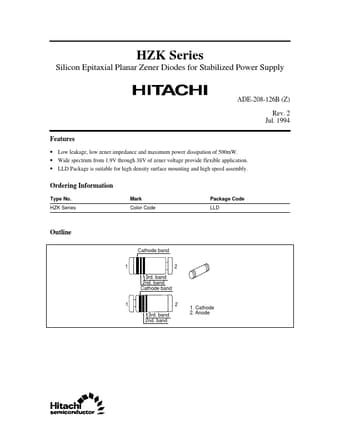

HZK Series Silicon Epitaxial Planar Zener Diodes for Stabilized Power Supply ADE-208-126B (Z) Rev. 2 Jul. 1994 Features • Low leakage, low zener impedance and maximum power dissipation of 500mW. • Wide spectrum from 1.9V through 38V of zener voltage provide flexible application. • LLD Package is suitable for high density surface mounting and high speed assembly. Ordering Information Type No. HZK Series Mark Color Code Package Code LLD Outline Cathode band 12 3rd. band 2nd. band Cathode band 1 2 1. Cathode 3rd. band 2. Anode 2nd. band HZK Series Absolute Maximum Ratings (Ta = 25°C) Item Power dissipation Junction temperature Storage temperature Note: With P.C. Board.
