HMC187AMS8E, HMC187AMS8 GaAs MMIC SMT PASSIVE FREQUENCY DOUBLER

HMC187AMS8E Description

HMC187AMS8 / 187AMS8E v00.0410 GaAs MMIC SMT PASSIVE FREQUENCY DOUBLER, 0.85 - 2.0 GHz INPUT Typical Applications The HMC187AMS8(E) is ideal for: <.
The HMC187AMS8(E) is a miniature frequency doubler MMIC in plastic 8-lead MSOP package.

HMC187AMS8E Features

* Conversion Loss: 15 dB Fo, 3Fo, 4Fo Isolation: 40 dB Input Drive Level: 10 to 20 dBm Functional Diagram

HMC187AMS8E Applications

* The HMC187AMS8(E) is ideal for:
* Wireless Local Loop
* LMDS, VSAT, and Point-to-Point Radios
* UNII & HiperLAN 5

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: HMC187AMS8E, HMC187AMS8. Please refer to the document for exact specifications by model.

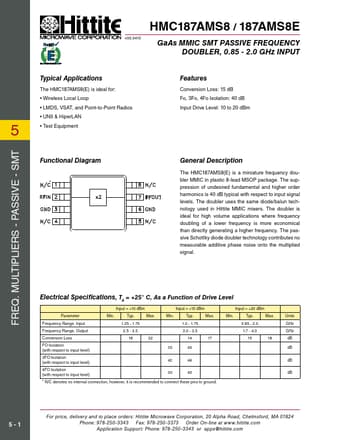

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HMC187AMS8E, HMC187AMS8
Manufacturer
Hittite Microwave Corporation
File Size
213.07 KB
Datasheet
HMC187AMS8-HittiteMicrowaveCorporation.pdf
Description
GaAs MMIC SMT PASSIVE FREQUENCY DOUBLER
Note
This datasheet PDF includes multiple part numbers: HMC187AMS8E, HMC187AMS8.
Please refer to the document for exact specifications by model.
