HOA088x, HOA0880 Datasheet - Honeywell

HOA088x, HOA0880, (HOA088x / HOA089x) Transmissive Sensor

The HOA088X/089X series consists of an infrared emitting diode facing an NPN silicon phototransistor encased in a black thermoplastic housing. Phototransistor switching takes place whenever an opaque object passes through the slot between emitter and detector. This series allows the user to choose f.

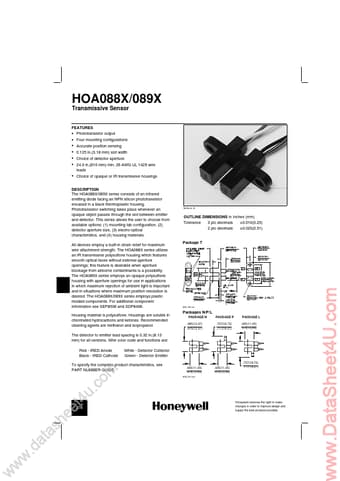

Datasheet Preview Page 1

HOA0880_Honeywell.pdf

HOA088x Datasheet Preview — This datasheet PDF includes multiple part numbers: HOA088x, HOA0880. Please refer to the document for exact specifications by model.

HOA088x Datasheet Preview Page 2

HOA088x Datasheet Preview Page 3

Datasheet Details

Part number:

HOA088x, HOA0880

Manufacturer:

Honeywell

File Size:

320.21 KB

Description:

(HOA088x / HOA089x) Transmissive Sensor

Note:

This datasheet PDF includes multiple part numbers: HOA088x, HOA0880.
Please refer to the document for exact specifications by model.

HOA088x Features

* Phototransistor output

* Four mounting configurations

* Accurate position sensing

* 0.125 in.(3.18 mm) slot width

* Choice of detector aperture

* 24.0 in.(610 mm) min. 26 AWG UL 1429 wire leads

* Choice of opaque or IR transmissive housings
