HBU406 NPN SILICON TRANSISTOR

HBU406 Description

Shantou Huashan Electronic Devices Co.,Ltd.NPN SILICON TRANSISTOR HBU406 APPLICATIONS High Voltage Swltching .ABSOLUTE MAXIMUM RATINGS Ta=25 Tst.

HBU406 Applications

* High Voltage Swltching . ABSOLUTE MAXIMUM RATINGS Ta=25 Tstg Storage Temperature -55~150 Tj Junction Temperature 150 PC Collector Dissipation Tc=25 60W VCBO Collector-Base Voltage 40 0 V VCEO Collector-Emitter Voltage 20 0 V VEBO Emitter- Base Voltage 6V IC Collector Current DC 7A IC

📥 Download Datasheet

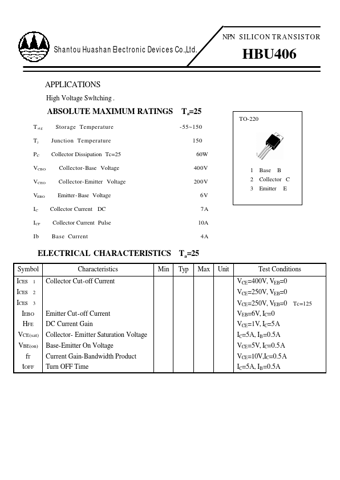

Preview of HBU406 PDF
datasheet Preview Page 2

Datasheet Details

Part number
HBU406
Manufacturer
Huashan
File Size
548.06 KB
Datasheet
HBU406-Huashan.pdf
Description
NPN SILICON TRANSISTOR
