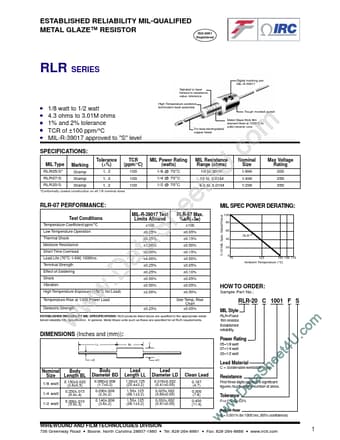

ESTABLISHED RELIABILITY MIL-QUALIFIED METAL GLAZE™ RESISTOR
ISO-9001 Registered
RLR SERIES
Digital marking per MIL-R-39017 Spiraled or laser helixed to resistance value, tolerance
- -
- -
- 1/8 watt to 1/2 watt 4.3 ohms to 3.01M ohms 1% and 2% tolerance TCR of ±100 ppm/°C MIL-R-39017 approved to "S" level
High Temperature soldered termination-lead assembly Tough molded jacket Metal Glaze thick film element fired at 1000°C to solid ceramic core
SPECIFICATIONS:
MIL Type RLR05/S- RLR07/S RLR20/S
- Conformally coated construction on all 1/8 nominal sizes.
RLR-07 PERFORMANCE:
Test Conditions
Temperature Coefficient ppm/°C Low Temperature Operation Thermal Shock
Moisture Resistance
Short...
