IS31FL3730 - AUDIO MODULATED MATRIX LED DRIVER

Description

IS31FL3730 is a LED matrix driver which

Features

  • an audio modulation display mode and a general LED dot matrix display mode. The default configuration of IS31FL3730 is to drive a single 8×8 LED matrix. However, IS31FL3730 may be configured to drive either one or two 8×8, 7×9, 6×10, or 5×11 dot matrix display(s). The intensity of any matrix picture can be modulated by an audio signal. In matrix display mode, the rows and columns of the matrix are internally scanned, requiring only one time programming of the individual LED on or off state, thus.

📥 Download Datasheet

📁 Similar Datasheet

  • IS31FL3730 - AUDIO MODULATED MATRIX LED DRIVER (Lumissil)
  • IS31FL3731C - AUDIO MODULATED MATRIX LED DRIVER (Lumissil)
  • IS31FL3732 - AUDIO MODULATED MATRIX LED DRIVER (Lumissil)
  • IS31FL3732A - AUDIO MODULATED MATRIX LED DRIVER (Lumissil)
  • IS31FL3733 - 12x16 DOTS MATRIX LED DRIVER (Lumissil)
  • IS31FL3733B - 12x16 DOTS MATRIX LED DRIVER (Lumissil)
  • IS31FL3736 - 12??8 DOTS MATRIX LED DRIVER (Lumissil)
  • IS31FL3736A - 12x8 DOTS MATRIX LED DRIVER (Lumissil)
  • IS31FL3739 - 8x8 / 7x9 MATRIX LED DRIVER (Lumissil)
  • IS31FL3719 - 16x8 / 15x9 MATRIX LED DRIVER (Lumissil)
Other Datasheets by ISSI

Full PDF Text Transcription

Click to expand full text

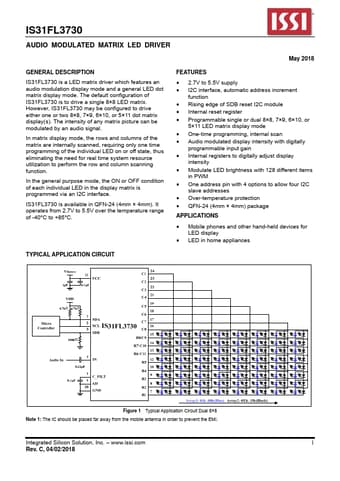

IS31FL3730 AUDIO MODULATED MATRIX LED DRIVER May 2018 GENERAL DESCRIPTION IS31FL3730 is a LED matrix driver which features an audio modulation display mode and a general LED dot matrix display mode. The default configuration of IS31FL3730 is to drive a single 8×8 LED matrix. However, IS31FL3730 may be configured to drive either one or two 8×8, 7×9, 6×10, or 5×11 dot matrix display(s). The intensity of any matrix picture can be modulated by an audio signal. In matrix display mode, the rows and columns of the matrix are internally scanned, requiring only one time programming of the individual LED on or off state, thus eliminating the need for real time system resource utilization to perform the row and column scanning function.
