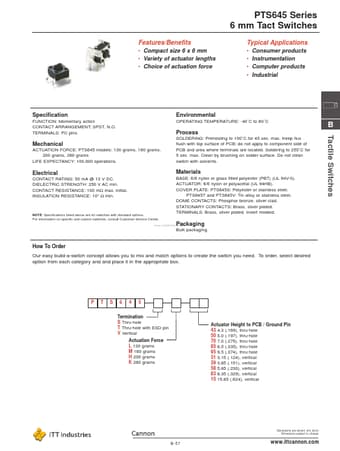

PTS645 Series 6 mm Tact Switches
Features/Benefits
• Compact size 6 x 6 mm • Variety of actuator lengths • Choice of actuation force
Typical Applications
• • • • Consumer products Instrumentation Computer products Industrial
Specification
FUNCTION: Momentary action CONTACT ARRANGEMENT: SPST, N.O. TERMINALS: PC pins
Environmental
OPERATING TEMPERATURE: -40˚C to 60˚C
B Tactile Switches
Process
SOLDERING: Preheating to 100˚C for 45 sec. max. Keep flux flush with top surface of PCB; do not apply to component side of PCB and area where terminals are located. Soldering to 255˚C for 5 sec. max. Clean by brushing on solder surface. Do not clean switch with solvents.
Mechanical
ACTUATION FORCE: PTS645 models: 130 grams, 160 grams, 200 grams, 260 grams LIFE EXPECTANCY: 100,000 operations.
