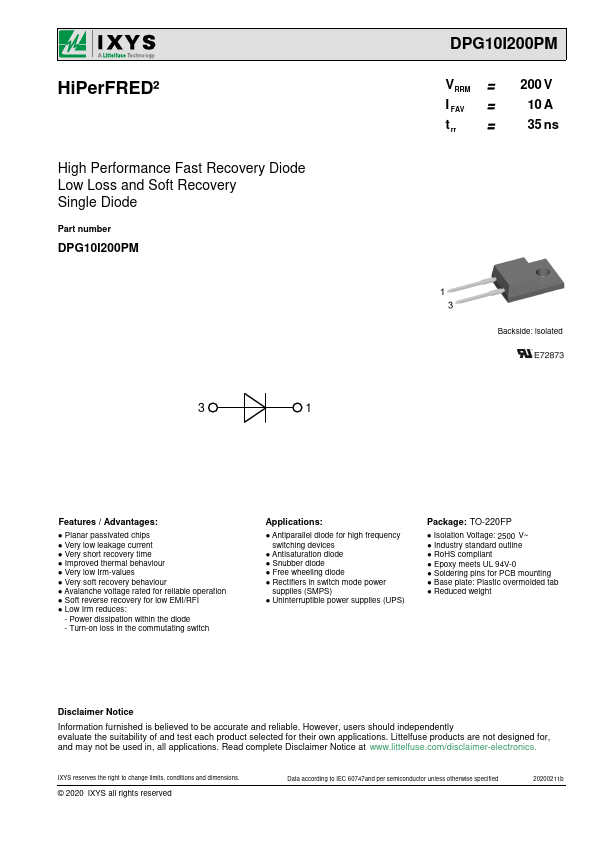

DPG10I200PM - High Performance Fast Recovery Diode

IXYS

📥 Download Datasheet

DPG10I200PM Datasheet Preview — Preview of DPG10I200PM PDF

Datasheet Details

Part number: DPG10I200PM
Manufacturer: IXYS
File Size: 196.80 KB
Datasheet: DPG10I200PM-IXYS.pdf
Description: High Performance Fast Recovery Diode

DPG10I200PM Product details

Description

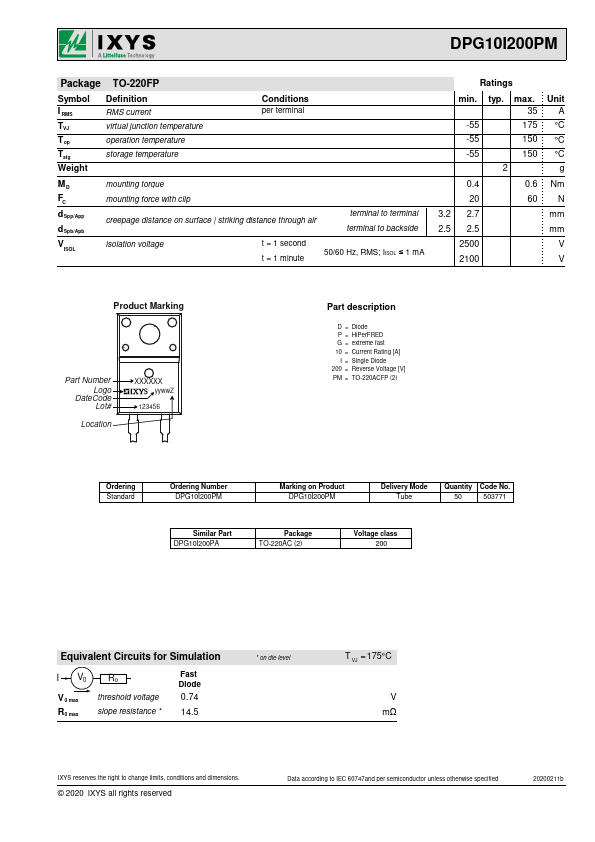

D = Diode P = HiPerFRED G = extreme fast 10 = Current Rating [A] I = Single Diode 200 = Reverse Voltage [V] PM = TO-220ACFP (2) Ordering Standard Ordering Number DPG10I200PM Marking on Product DPG10I200PM Delivery Mode Tube Quantity Code No.50 503771 Similar Part DPG10I200PA Package TO-220AC (2) Voltage class 200 Equivalent Circuits for Simulation I V0 R0 V 0 max R0 max threshold voltage slope resistance. Fast Diode 0.74 14.5. on die level T VJ = 175°C V mΩ IXYS res.

Features

/ Advantages:.
Planar passivated chips.
Very low leakage current.
Very short recovery time.
Improved thermal behaviour.
Very low Irm-values.
Very soft recovery behaviour.
Avalanche voltage rated for reliable operation.
Soft reverse recovery for low EMI/RFI.
Low Irm reduces: - Power dissipation within the diode - Turn-on loss in the commutating switch.
