DSI2x55-16A - Standard Rectifier

Datasheet Summary

Features

  • / Advantages:.
  • Planar passivated chips.
  • Very low leakage current.
  • Very low forward voltage drop.
  • Improved thermal behaviour.

📥 Download Datasheet

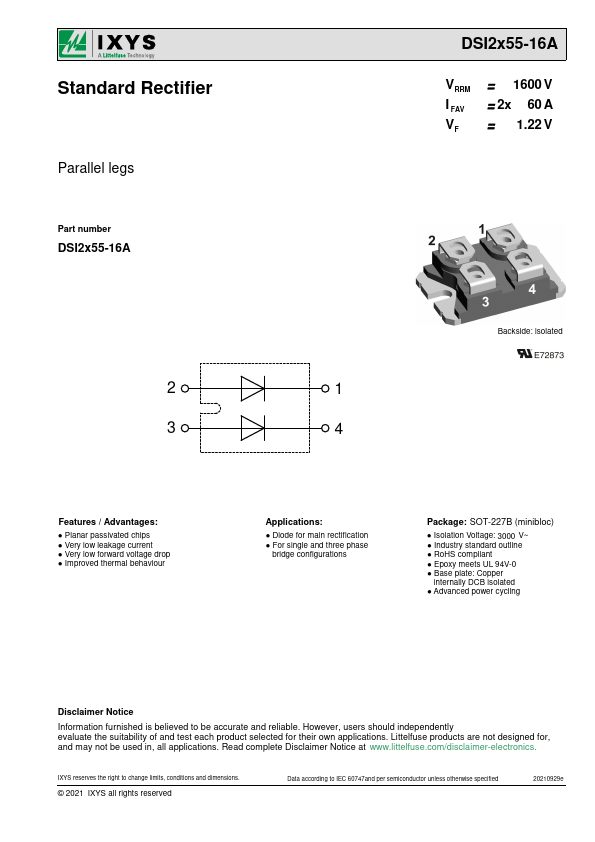

Datasheet preview – DSI2x55-16A

Datasheet Details

Part number DSI2x55-16A
Manufacturer IXYS
File Size 528.54 KB
Description Standard Rectifier
Datasheet download datasheet DSI2x55-16A Datasheet

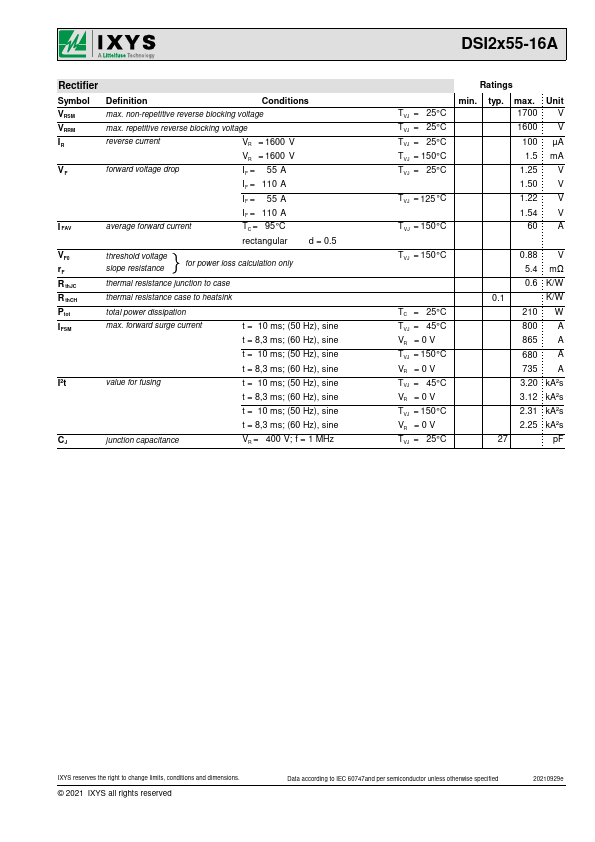

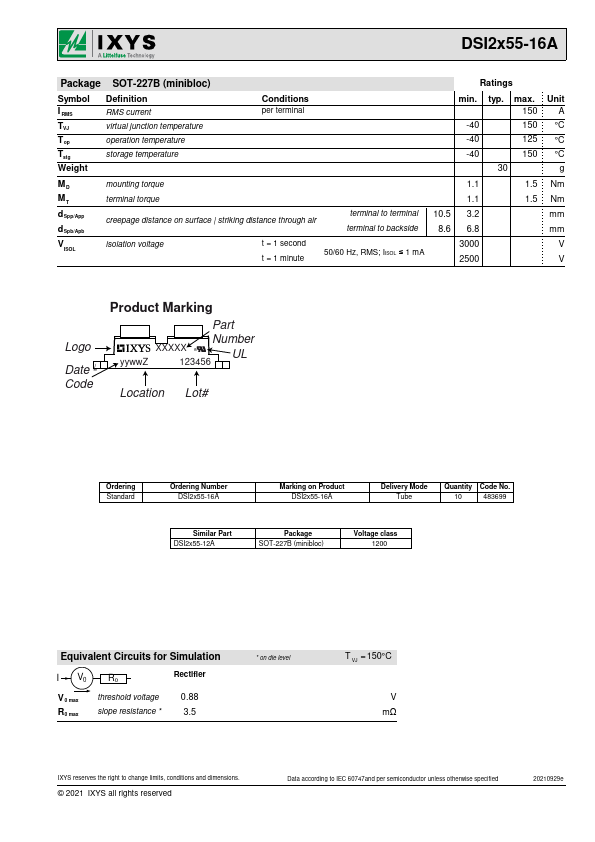

Additional preview pages of the DSI2x55-16A datasheet.

📁 Similar Datasheet

  • DSI2X55 - Rectifier Diode (IXYS Corporation)
  • DSI17-08A - Rectifier Diode Avalanche Diode (ETC)
  • DSI17-12A - Rectifier Diode Avalanche Diode (ETC)
  • DSI35 - Rectifier Diode Avalanche Diode (IXYS Corporation)
  • DSI35-08A - Rectifier Diode Avalanche Diode (IXYS Corporation)
  • DSI35-12A - Rectifier Diode Avalanche Diode (IXYS Corporation)
  • DSI75 - Rectifier Diode (IXYS Corporation)
  • DSIK45 - Rectifier Diode with common cathode (ETC)
  • DSILC6-4F2 - ESD Protection (STMicroelectronics)
  • DSILC6-4P6 - ESD Protection (STMicroelectronics)
Other Datasheets by IXYS

Full PDF Text Transcription

Click to expand full text
Standard Rectifier Parallel legs Part number DSI2x55-16A 2 3 DSI2x55-16A VRRM I FAV VF = 1600 V = 2x 60 A = 1.22 V Backside: isolated 1 4 Features / Advantages: ● Planar passivated chips ● Very low leakage current ● Very low forward voltage drop ● Improved thermal behaviour Applications: ● Diode for main rectification ● For single and three phase bridge configurations Package: SOT-227B (minibloc) ● Isolation Voltage: 3000 V~ ● Industry standard outline ● RoHS compliant ● Epoxy meets UL 94V-0 ● Base plate: Copper internally DCB isolated ● Advanced power cycling Disclaimer Notice Information furnished is believed to be accurate and reliable. However, users should independently evaluate the suitability of and test each product selected for their own applications.
Published: |
