DSP45-12AZ - Standard Rectifier

Features

  • / Advantages:.
  • Planar passivated chips.
  • Very low leakage current.
  • Very low forward voltage drop.
  • Improved thermal behaviour.
  • High commutation robustness.
  • High surge capability.

📥 Download Datasheet

Datasheet preview – DSP45-12AZ

📁 Similar Datasheet

  • DSP45 - Phase-leg Rectifier Diode (IXYS Corporation)
  • DSP-141N - DSP (Mitsubishi Electric Semiconductor)
  • DSP-201M - DIA SURGE SUPPRESSOR (Mitsubishi Electric Semiconductor)
  • DSP-201M - DSP (Mitsubishi Electric Semiconductor)
  • DSP-301N - DSP (Mitsubishi Electric Semiconductor)
  • DSP-501N - DSP (Mitsubishi Electric Semiconductor)
  • DSP-751N - DSP (Mitsubishi Electric Semiconductor)
  • DSP-A1092 - NATURAL SOUND AV AMPLIFIRE (ETC)
  • DSP1-DC1.5V - small polarized power relays (Panasonic)
  • DSP1-DC12V-F - small polarized power relays (Panasonic)
Other Datasheets by IXYS

Full PDF Text Transcription

Click to expand full text

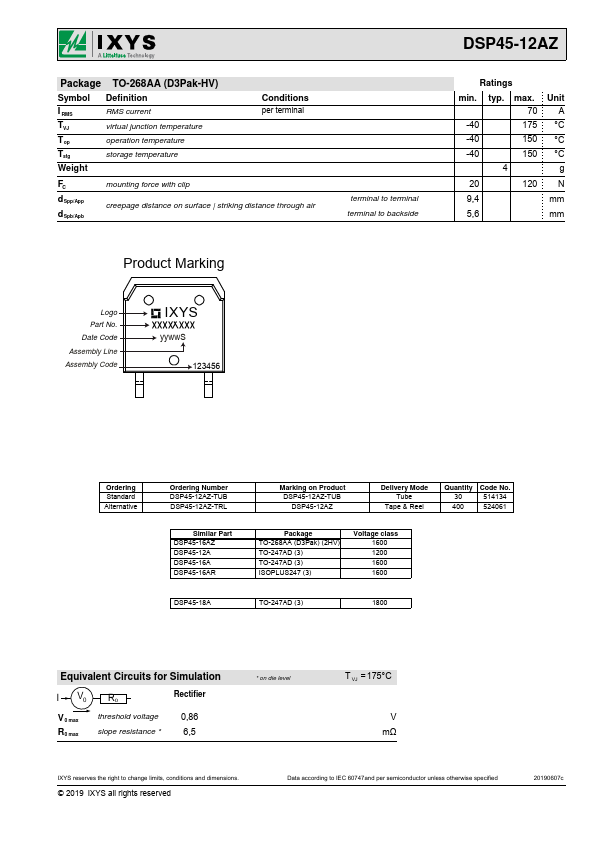

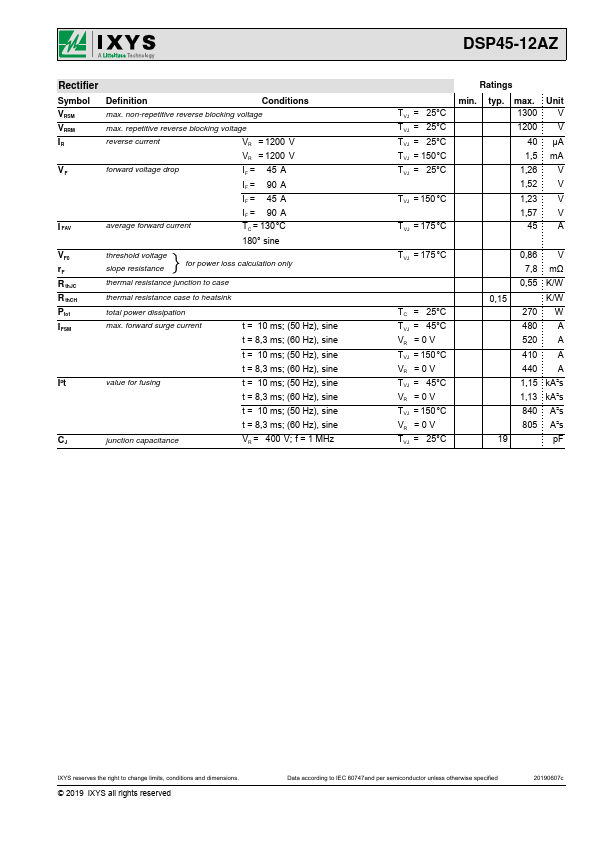

Standard Rectifier Phase leg Part number DSP45-12AZ 1 4 3 DSP45-12AZ VRRM I FAV VF = 2x 1200 V = 45 A = 1,23 V Backside: anode/cathode Features / Advantages: ● Planar passivated chips ● Very low leakage current ● Very low forward voltage drop ● Improved thermal behaviour ● High commutation robustness ● High surge capability Applications: ● Diode for main rectification ● For single and three phase bridge configurations Package: TO-268AA (D3Pak-HV) ● Industry standard outline ● RoHS compliant ● Epoxy meets UL 94V-0 Disclaimer Notice Information furnished is believed to be accurate and reliable. However, users should independently evaluate the suitability of and test each product selected for their own applications.
