DSS2x160-01A - Power Schottky Rectifier

Features

  • / Advantages:.
  • Very low VF.
  • Extremely low switching losses.
  • Low IRM-values.
  • High reliability circuit operation.
  • Low voltage peaks for reduced protection circuits.
  • Low noise switching.
  • Low losses 3 Anode 1 4.

📥 Download Datasheet

Datasheet preview – DSS2x160-01A

📁 Similar Datasheet

  • DSS2X160-0045A - Power Schottky Rectifier (IXYS Corporation)
  • DSS2x101-015A - 2 x 100A High-Performance Schottky Diode (Littelfuse)
  • DSS2x101-02A - 2 x 100A High-Performance Schottky Diode (Littelfuse)
  • DSS2x121-0045B - 2 x 120A High-Performance Schottky Diode (Littelfuse)
  • DSS2x41-01A - 2 x 40A High-Performance Schottky Diode (Littelfuse)
  • DSS2x61-0045A - 2 x 60A High-Performance Schottky Diode (Littelfuse)
  • DSS2x61-01A - 2 x 60A High-Performance Schottky Diode (Littelfuse)
  • DSS2x81-0045B - 2 x 80A High-Performance Schottky Diode (Littelfuse)
  • DSS20200L - PNP LOW SATURATION TRANSISTOR (Diodes)
  • DSS20201L - NPN SURFACE MOUNT TRANSISTOR (Diodes)
Other Datasheets by IXYS

Full PDF Text Transcription

Click to expand full text

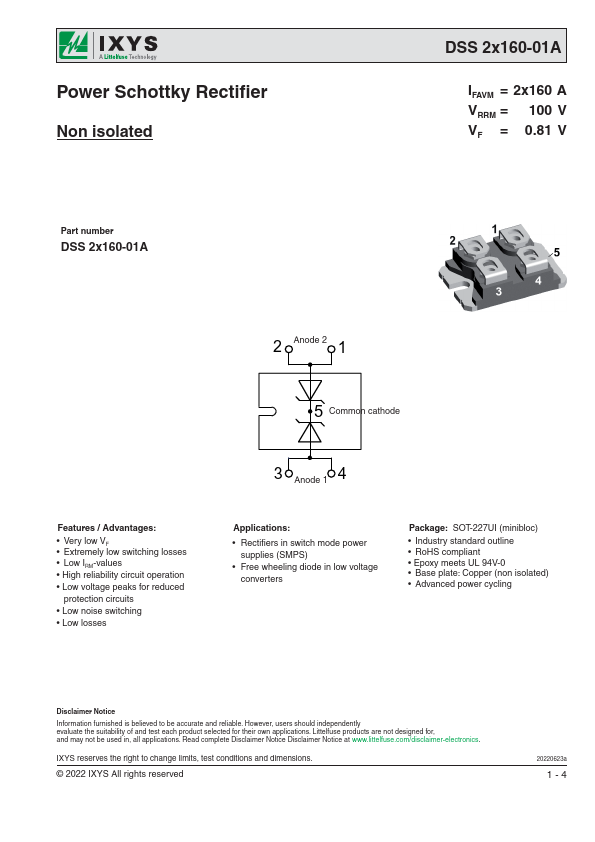

Power Schottky Rectifier Non isolated DSS 2x160-01A IFAVM = 2x160 A VRRM = 100 V VF = 0.81 V Part number DSS 2x160-01A 2 Anode 2 1 5 Common cathode Features / Advantages: • Very low VF • Extremely low switching losses • Low IRM-values • High reliability circuit operation • Low voltage peaks for reduced protection circuits • Low noise switching • Low losses 3 Anode 1 4 Applications: • Rectifiers in switch mode power supplies (SMPS) • Free wheeling diode in low voltage converters Package: SOT-227UI (minibloc) • Industry standard outline • RoHS compliant • Epoxy meets UL 94V-0 • Base plate: Copper (non isolated) • Advanced power cycling Disclaimer Notice Information furnished is believed to be accurate and reliable.
