IX2120 - 1200V High and Low Side Gate Driver

Product Overview

IXYS

Part number	IX2120
Manufacturer	IXYS
File Size	263.74 KB
Description	1200V High and Low Side Gate Driver
Datasheet	IX2120 Datasheet

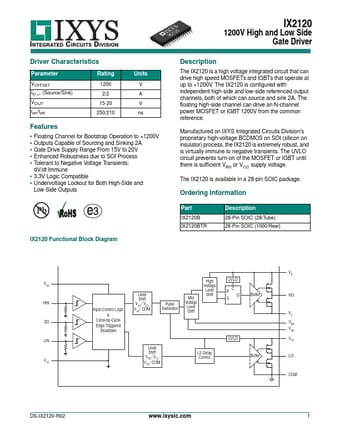

Additional preview pages of the IX2120 datasheet.

The IX2120 is a high voltage integrated circuit that can drive high speed MOSFETs and IGBTs that operate at up to +1200V.

The IX2120 is configured with independent high-side and low-side referenced output channels, both of which can source and sink 2A.

Floating Channel for Bootstrap Operation to +1200V.
Outputs Capable of Sourcing and Sinking 2A.
Gate Drive Supply Range From 15V to 20V.
Enhanced Robustness due to SOI Process.
Tolerant to Negative Voltage Transients: dV/dt Immune.
3.3V Logic Compatible.
Undervoltage Lockout for Both High-Side and Low-Side Outputs IX2120 Functional Block Diagram IX2120 1200V High and Low Side Gate Driver.
