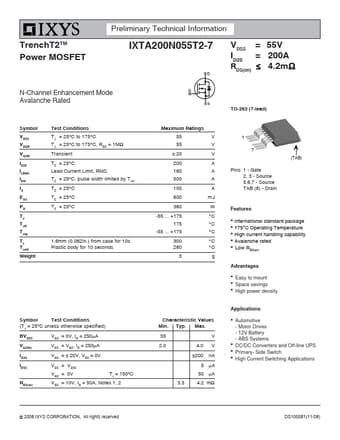

IXTA200N055T2-7
Features z International standard package z 175°C Operating Temperature z High current handling capability z Avalanche rated z Low RDS(on)
Advantages z Easy to mount z Space savings z High power density
Applications z Automotive
- Motor Drives
- 12V Battery
- ABS Systems z DC/DC Converters and Off-line UPS z Primary- Side Switch z High Current Switching Applications
© 2008 IXYS CORPORATION, All rights reserved
DS100081(11/08)
Symbol
Test Conditions
(TJ = 25°C, unless otherwise specified) gfs VDS = 10V, ID = 60A, Note 1
Ciss Coss Crss
VGS = 0V, VDS = 25V, f = 1MHz td(on) tr td(off) tf
Resistive Switching Times
VGS = 10V, VDS = 30V, ID = 50A RG = 3.3Ω (External)
Qg(on) Qgs Qgd
VGS = 10V, VDS = 0.5
- VDSS, ID = 0.5
- ID25
Rth JC
Characteristic Values Min. Typ. Max.
50 80
6970 1026
228 p F p F p F
26 ns 22 ns 49 ns 27 ns
109 n C 35 n C 24 n C
0.42 °C/W
Source-Drain Diode
Symbol
Test Conditions
(TJ = 25°C, unless otherwise specified)
IS VGS = 0V
ISM Repetitive, Pulse...
