MCMA140P1800TA Datasheet - IXYS

Thyristor

MCMA140P1800TA Features

* / Advantages:

* Thyristor for line frequency

* Planar passivated chip

* Long-term stability

* Direct Copper Bonded Al2O3-ceramic Applications:

* Line rectifying 50/60 Hz

* Softstart AC motor control

* DC Motor control

* Power converter

* AC power control

* Li

MCMA140P1800TA General Description

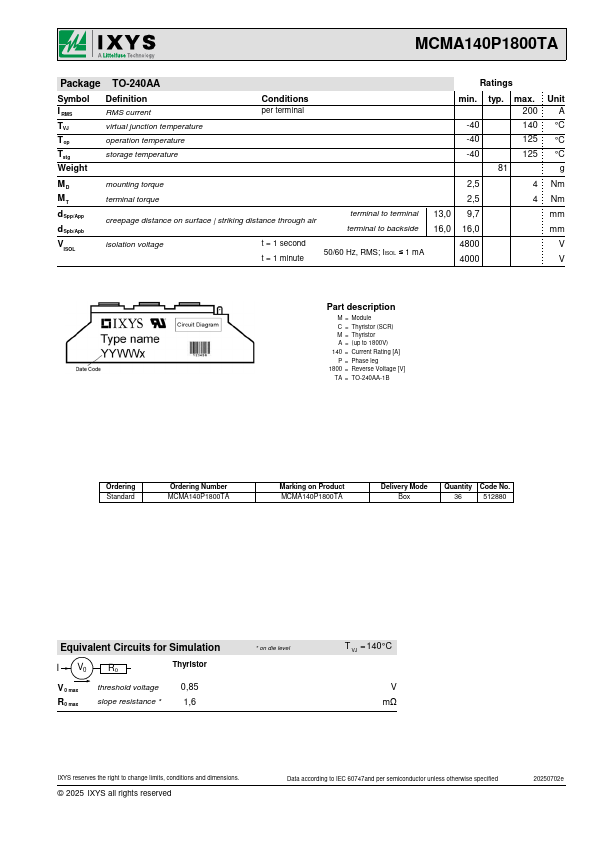

M = Module C = Thyristor (SCR) M = Thyristor A = (up to 1800V) 140 = Current Rating [A] P = Phase leg 1800 = Reverse Voltage [V] TA = TO-240AA-1B Ordering Standard Ordering Number MCMA140P1800TA Marking on Product MCMA140P1800TA Delivery Mode Box Quantity Code No. 36 512880 Equivalent Circui.

MCMA140P1800TA Datasheet (424.51 KB)

MCMA140P1800TA Datasheet Preview — Preview of MCMA140P1800TA PDF

Datasheet Details

Part number:

MCMA140P1800TA

Manufacturer:

IXYS

File Size:

424.51 KB

Description:

Thyristor.

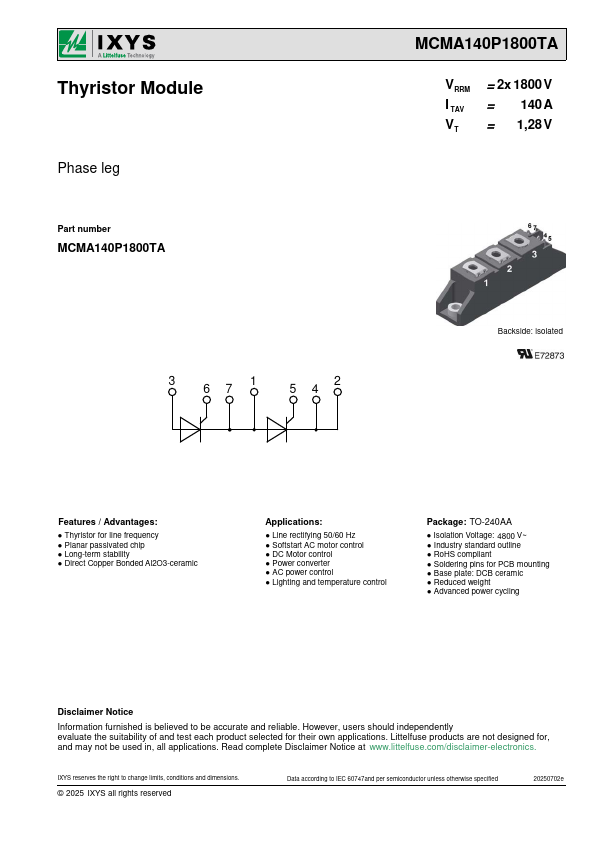

Thyristor Module Phase leg Part number MCMA140P1800TA MCMA140P1800TA VRRM I TAV VT = 2x 1800 V = 140 A = 1.28 V 3 67 1 542 Backside: isolated .
