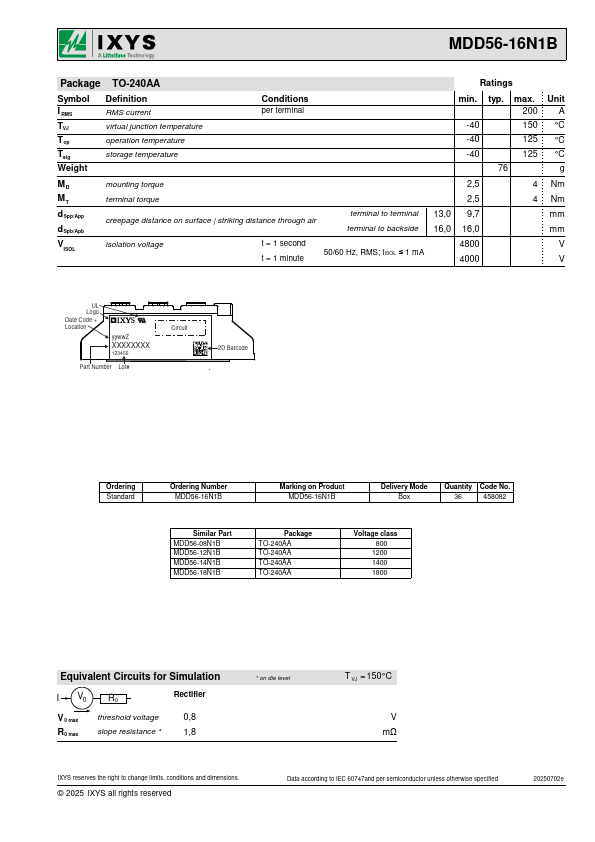

MDD56-16N1B page 3
Page 3

MDD56-16N1B Key Features

  • Package with DCB ceramic
  • Improved temperature and power cycling
  • Planar passivated chips
  • Very low forward voltage drop
  • Very low leakage current

Related IXYS Datasheets

Part Number Description
MDD56-12N1B Standard Rectifier Module
MDD56-14N1B Standard Rectifier Module
MDD56-18N1B Standard Rectifier Module
MDD56-08N1B Standard Rectifier
MDD510-18N3 Diode Modules

MDD56-16N1B Description

Standard Rectifier Module Phase leg Part number MDD56-16N1B 2 1 3 MDD56-16N1B VRRM I FAV VF = 2x 1600 V = 71 A = 1,14 V Backside:.

MDD56-16N1B Applications

  • Diode for main rectification
  • For single and three phase
  • Supplies for DC power equipment
  • Input rectifiers for PWM inverter
